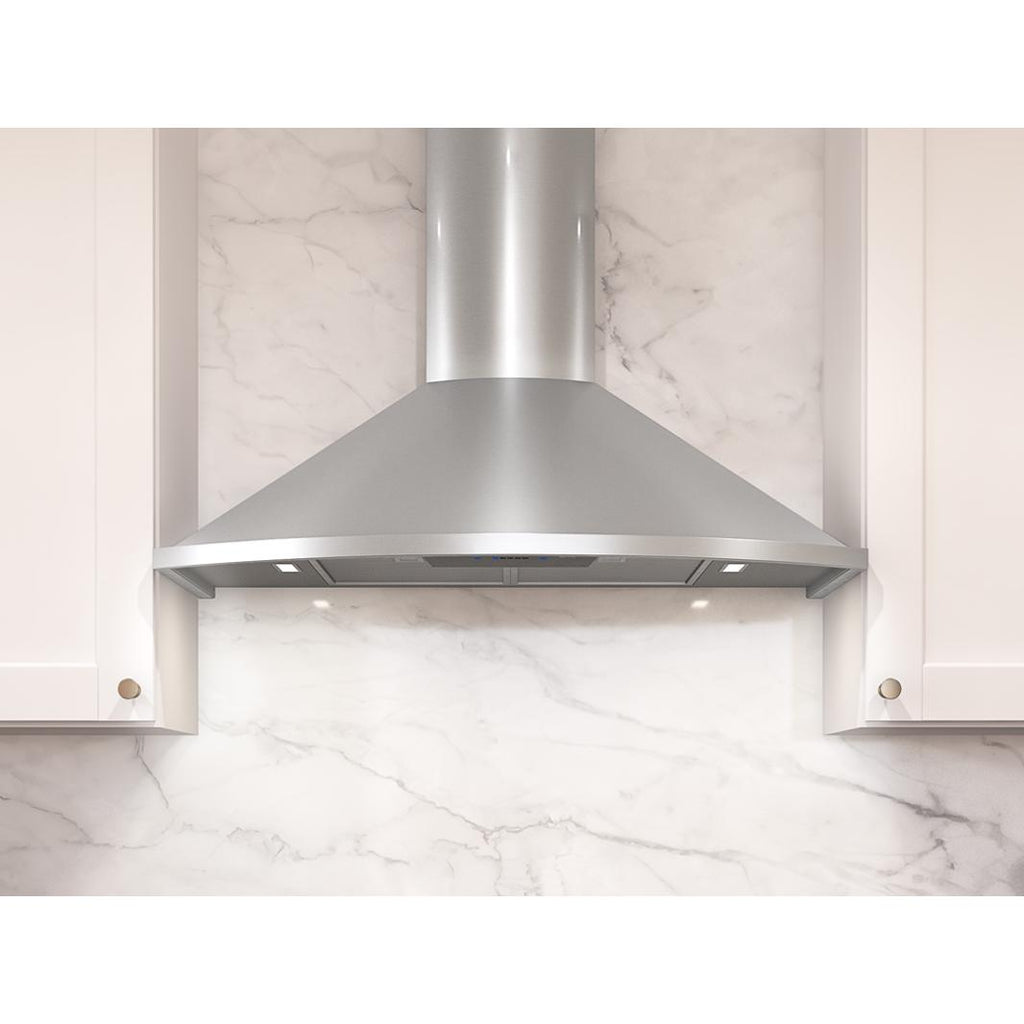

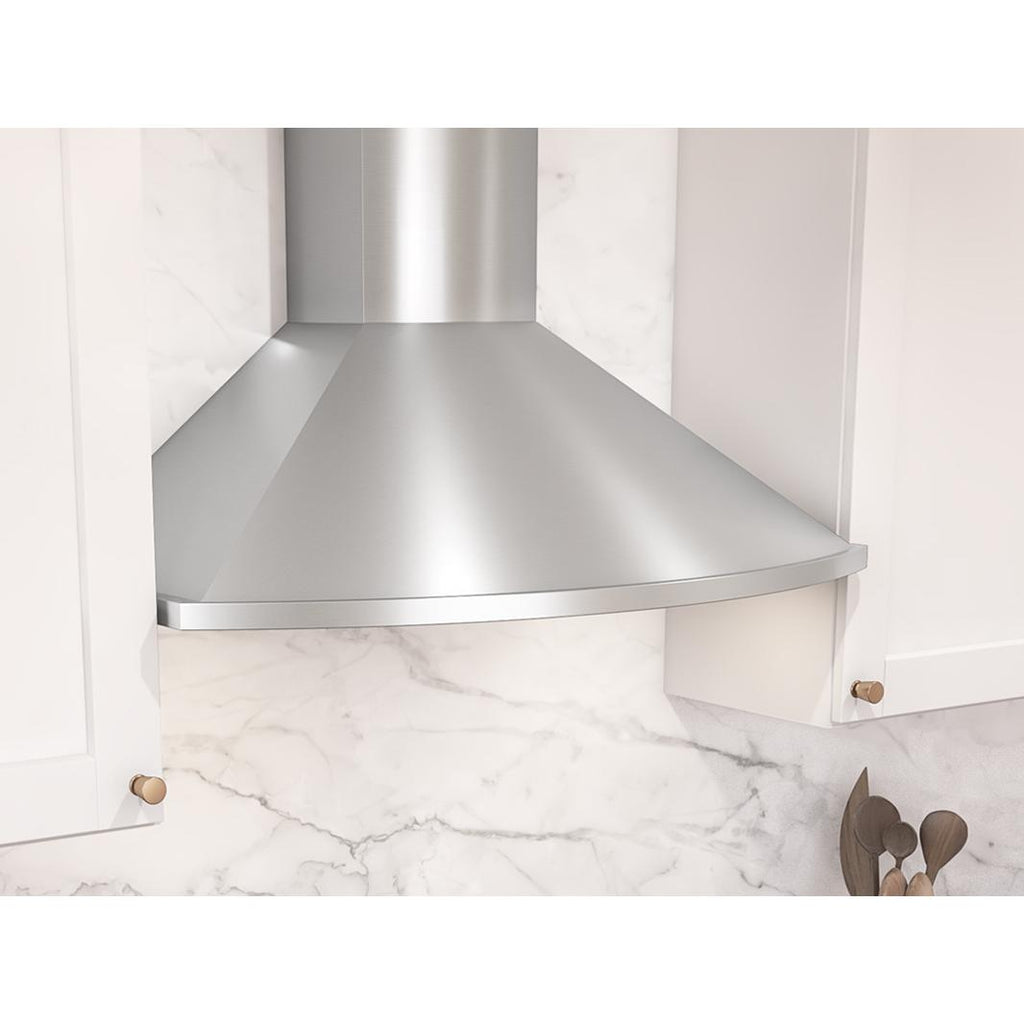

Zephyr 36-inch Core Savona Serie Wall Mount Hood ZSA-M90FS

ZephyrModel Number: ZSAM90FS
Savona’s semi-circular surfaces accentuate this range hood’s European design with delicate reflections of light and shadows. Available in stainless steel,... Savona’s semi-circular surfaces accentuate this range hood’s European design with delicate reflections of light and shadows. Available in stainless steel, powder-coated black, white, and the sleek alternative to stainless steel: black stainless steel. Savona features a robust 600-CFM blower, dual-level LumiLight LED lighting, ICON Touch® controls and our exclusive Airflow Control Technology (ACT™). Now available with an optional ADA-compliant remote control. View more
Save $790.00 Sale Ends March 03, 2025 Price:
$1,149.00 $1,939.00

Buy Now, Pay Later! - Explore our flexible financing options. Learn more

Protection Plans

Please select a warranty option

Installation & Accessories

Discounts and Delivery Will Be Calculated at Checkout

Find a store

Since 1975

We have been serving our local communities for 48 years.

#ShopLocal

Two Locations to Serve You

From Chilliwack to Pemberton, we cover over 300kms.

Service & Installation

Avoid dealing with the manufacturer’s 1-800-#’s.

Have a service issue? We have a in house service team!

You may also like

Features Specifications Documents
Documents
Installation Guide
Owners Manual
Product Specifications
Warranty Details
Dimensions Sheet
Features
ACT™ CONTROL TECHNOLOGY
Airflow Control Technology (ACT) allows the installer to set the maximum fan CFM to align with local codes and regulations.
ACT™ CONTROL TECHNOLOGY
Additional Features
ICON TOUCH™ CONTROLS
Seamlessly integrates into the hood’s stainless steel canopy and allows users to easily control the 5-speeds, delay-off function, auto reminders and Airflow Control Technology.
Specifications
General
Series Name
Core Savona
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Stainless Steel
Installation
Wall Mount
Features
Technologies
• Airflow Control Technology™ (ACT™)
• ICON Touch® Controls
Ducting Information
6" Round
Speeds
• Speed Levels: 5*
• Blower CFM (Min. - Max.): 200 - 600
• Sones (Min. - Max.): 1 - 6
• ACT 390 CFM (Min. - Max.): 200 - 390
• ACT 290 CFM (Min. - Max.): 200 - 290
• *When ACT™ is enabled the maximum speed levels will change. ACT 390 CFM = 4 speeds and ACT 290 CFM = 3 speeds
Additional Information
• Auto Delay-Off
• Lighting: LumiLight LED, 6W x2
• Dual-Level Lighting
• Filters: Aluminum Mesh x2
• Recirculating Option
• Extension Duct Cover Option: Up to 12' Ceiling
Electrical Information
Information
120V, 60Hz at Max. 4A
Certifications and Approvals
Information
ADA Compliant with remote accessory
Accessories
Optional
• Wireless Remote Control Kit: RC-0002
• Recirculating Kit: ZRC-00SV
• Extension Duct Cover: Z1C-01SA (SS)
• Make-Up Air Kit: MUA008A
• Baffle Filter Kit (2 filters): Z0F-B001
Dimensions
Class Width
36"
Width
35.44 inch(es) / 90.01 cm
Height
11 inch(es) / 27.94 cm
Depth
19.5 inch(es) / 49.53 cm
Additional Dimensions
Mounting Height Range: 26" - 34"
Warranty
Warranty
3 years parts, 1 year labor
UPC
UPC#
646328011030
