DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning
that could occur if a refrigerator door or freezer drawer remains open. If a
refrigerator door or freezer drawer is left open for more than 60 seconds,
a warning alarm sounds at 30 second intervals.
MULTI-AIR FLOW COOLING
Multi-Air Flow Freshness System is designed to maintain superior humidity and temperature levels to help keep your food fresher, longer. Digital sensors constantly monitor conditions within the refrigerator and strategically-placed vents in every section to help surround your food with cool air no matter where you put it.
SMART COOLING SYSTEM
Smart Cooling system is designed to maintain superior conditions within the refrigerator. The Linear Compressor reacts quickly to temperature fluctuations and helps keep your food fresher, longer. Meanwhile, strategically-placed vents in every section surround your food with cool air no matter where you put it.
Specifications
General
Refrigerator Type
Bottom Freezer
Installation Type
Freestanding
Counter-Depth
Yes
Door Hinge
Right
Color
White
Manufacturer Color
White
Capacity
Total
12 cu. ft.
Refrigerator
8.2 cu. ft.
Freezer
3.8 cu. ft.
Refrigerator Features
Technologies
• Multi-Air Flow™ Cooling
• LoDecibel™ Quiet Operation
• SmartDiagnosis™
• LoDecibel™ Quiet Operation
• SmartDiagnosis™
Door Alarm
Yes
Electronic Sensors
Yes
Frost Free
Yes

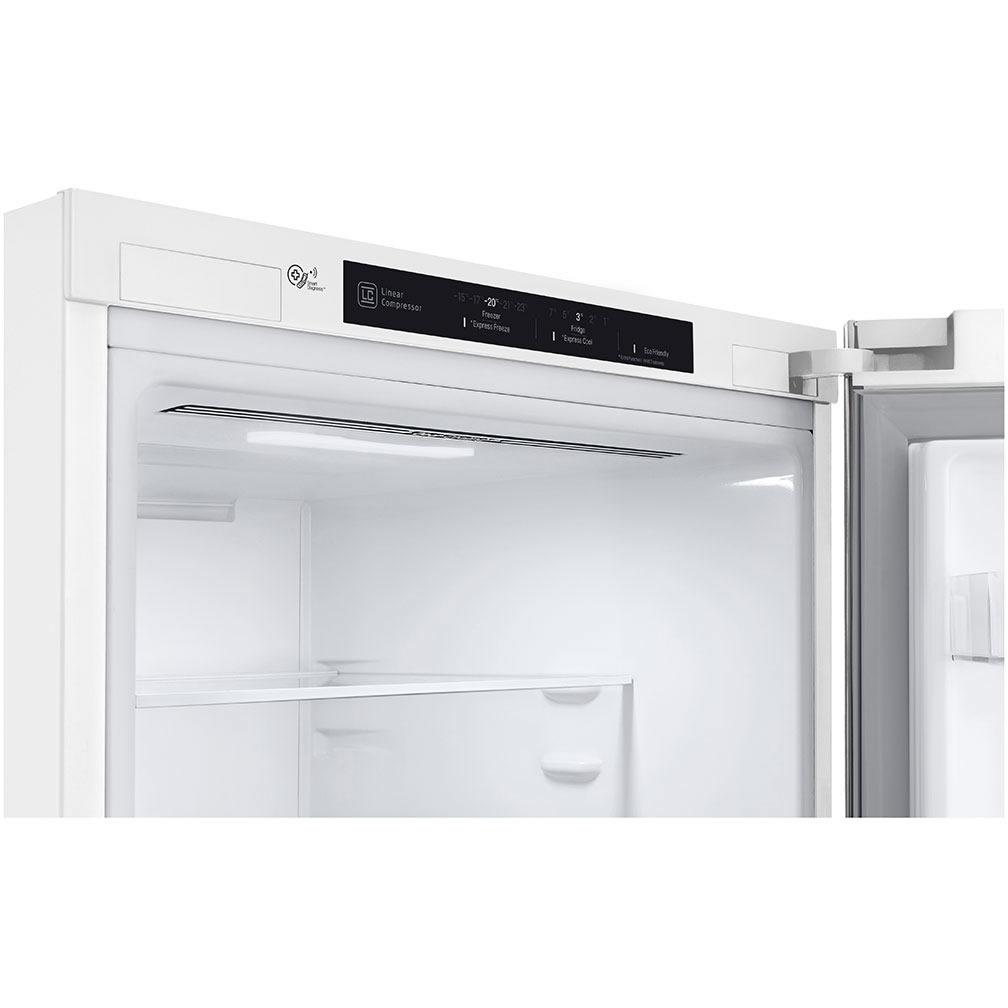

Interior Light
Yes

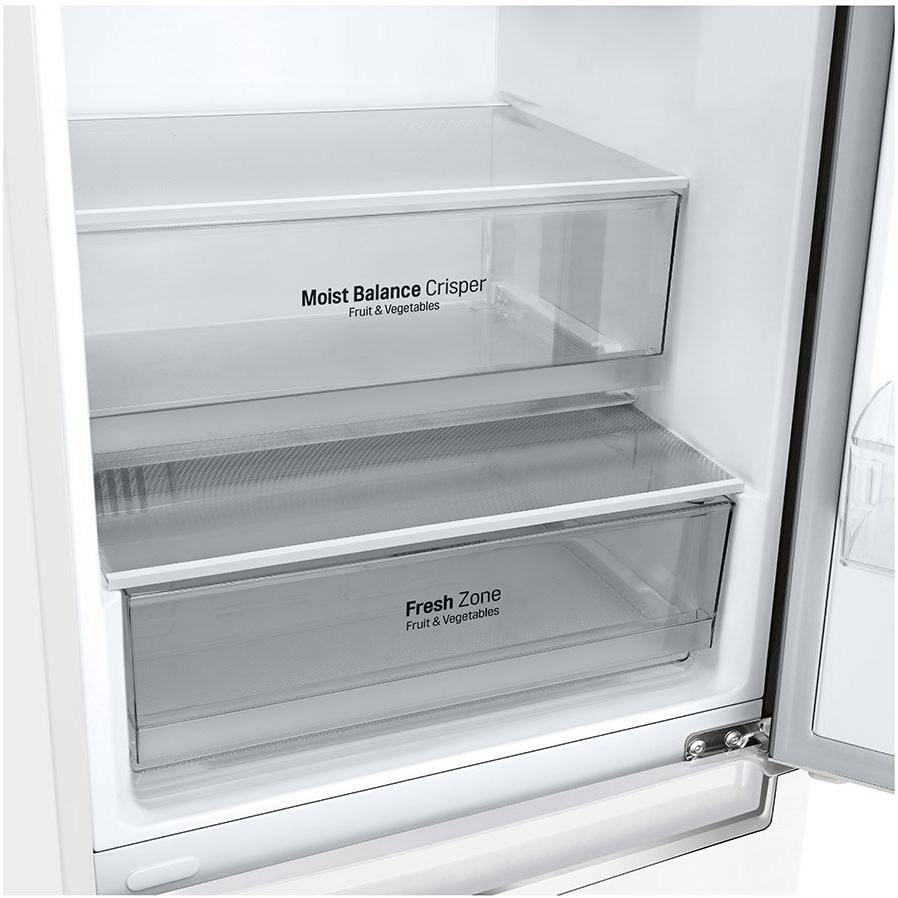

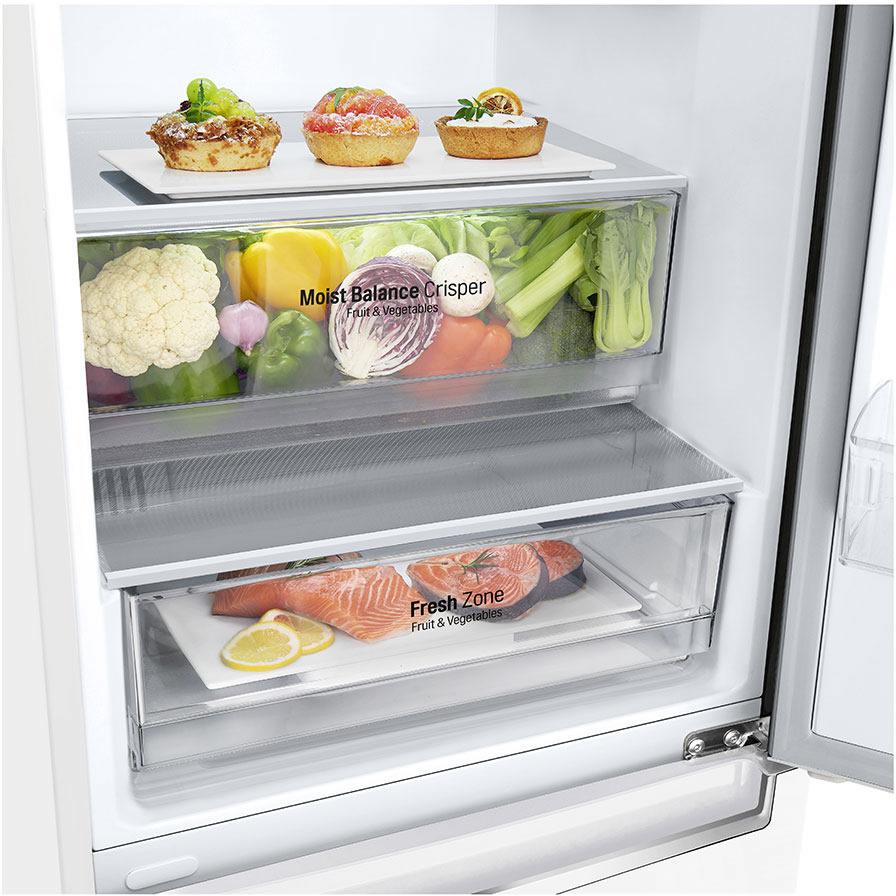

Crisper Drawers
Yes
Deli Drawer/Meat
Yes
Gallon Door
Yes
Wine Storage
Yes
Additional Information
• Inverter Linear Compressor
• 4 Temperature Sensors
• Express Cooling
• Express Freezing
• Vacation Mode
• Door Cooling+
• 2 Bottles Wine Rack
• 2 Shelves
• 2 Crisper Bins
• Tower LED Lighting
• 4 Temperature Sensors
• Express Cooling
• Express Freezing
• Vacation Mode
• Door Cooling+
• 2 Bottles Wine Rack
• 2 Shelves
• 2 Crisper Bins
• Tower LED Lighting
Freezer Features
Additional Freezer Information

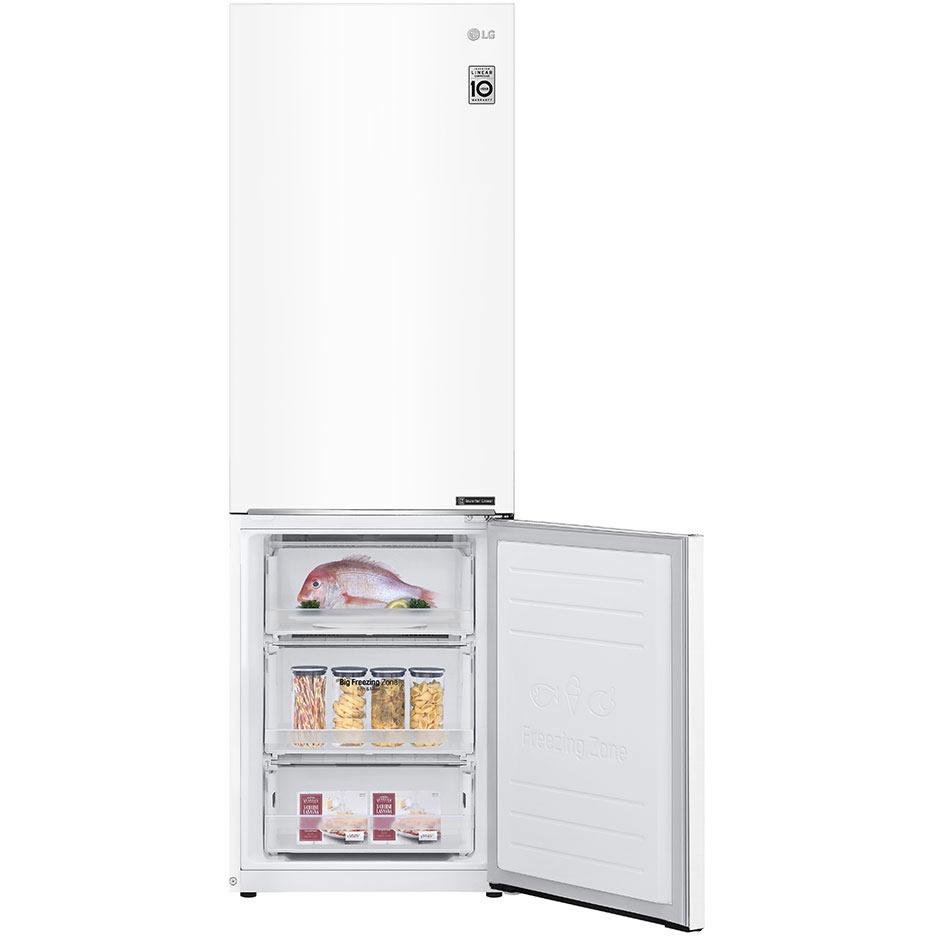

• 3 Drawers in Freezer
• Pocket Handles
• Twist Tray Ice System
• Pocket Handles
• Twist Tray Ice System
Ice and Water
Ice System
Interior
Electrical Information
Information
402 (kWh/Year)
Certifications and Approvals
Energy Star Certified
Yes
Dimensions
Class Width
23" to 28.9"
Class Height
70" and More
Width
23.43 inch(es) / 59.51 cm
Height (With Hinge)
73.22 inch(es) / 185.98 cm
Depth (Without Handles)
26.86 inch(es) / 68.22 cm
Weight
154.3 lb(s) / 69.99 kg
Additional Dimensions
• Depth Without Door: 24 1/5"
• Height to Top of Case: 73 2/9"
• Installation Clearance: Top 2", Back 2"
• Height to Top of Case: 73 2/9"
• Installation Clearance: Top 2", Back 2"
Shipping Dimensions
Width
25.8 inch(es) / 65.53 cm
Height
76.88 inch(es) / 195.28 cm
Depth
30 inch(es) / 76.2 cm
Weight
172 lb(s) / 78.02 kg
Warranty
Warranty
• 1 Year Parts and Labor
• 7 Years Parts on the Sealed System
• 10 Years Parts on Linear Compressor
• 7 Years Parts on the Sealed System
• 10 Years Parts on Linear Compressor
UPC
UPC#
772454071324
