Specifications
General
Series Name
• Alta
• ALT3 Series
• ALT3 Series
Blower Included
Yes
Airflow
420 CFM
Style
Standard
Color
White
Manufacturer Color
White
Installation
Under-Cabinet
Features
Dishwasher-Proof Filters
Yes
Technologies
Code Ready Technology (CRT): Supports the installer's job with the ability to reduce airflow to 300 or 400 CFM to address local codes or make-up air requirements, originally 490 Max Blower CFM
Ducting Information
• 3.25 x 10-inch rectangular
• 7-inch round
• 7-inch round
Speeds
3 Speeds
Additional Information
• 50 Points of Inspection: Expect a durable, long-standing ventilation solution engineered by the leader in indoor air quality
• Up to 71% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 71% quieter than competition at 1.1 sones on working speed
• One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers
• Both ENERGY STAR certified and Title 24 compliant (with electric ranges only), this kitchen hood is energy efficient and code compliant
• Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience

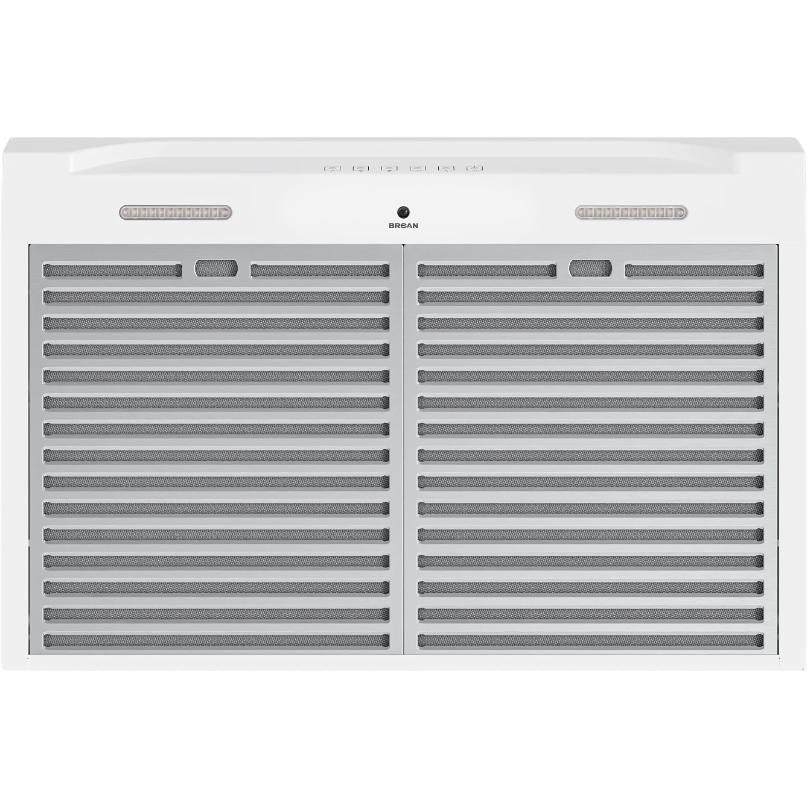

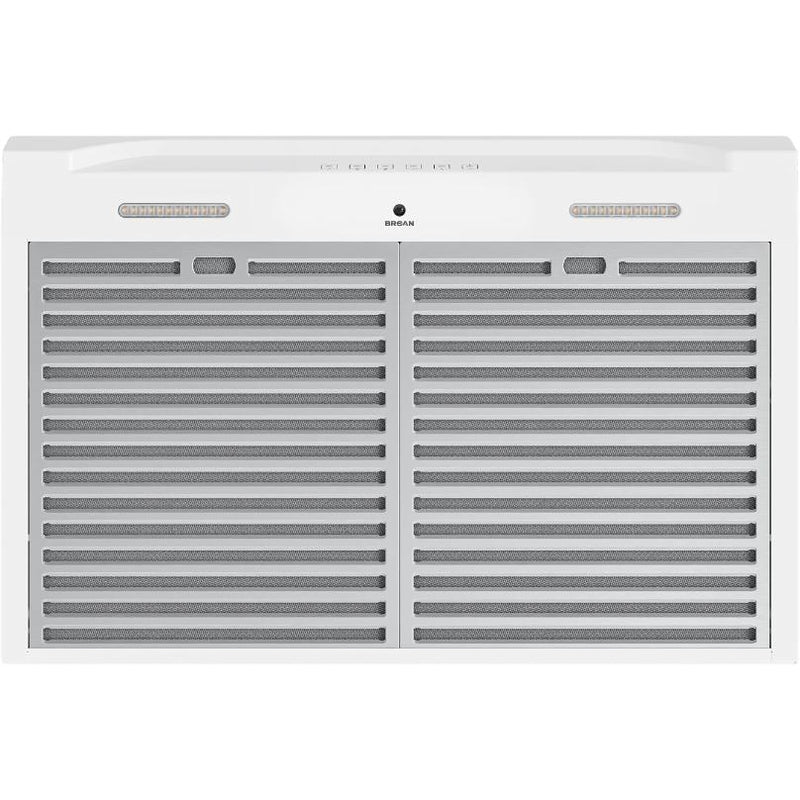

• Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency hybrid baffle filters

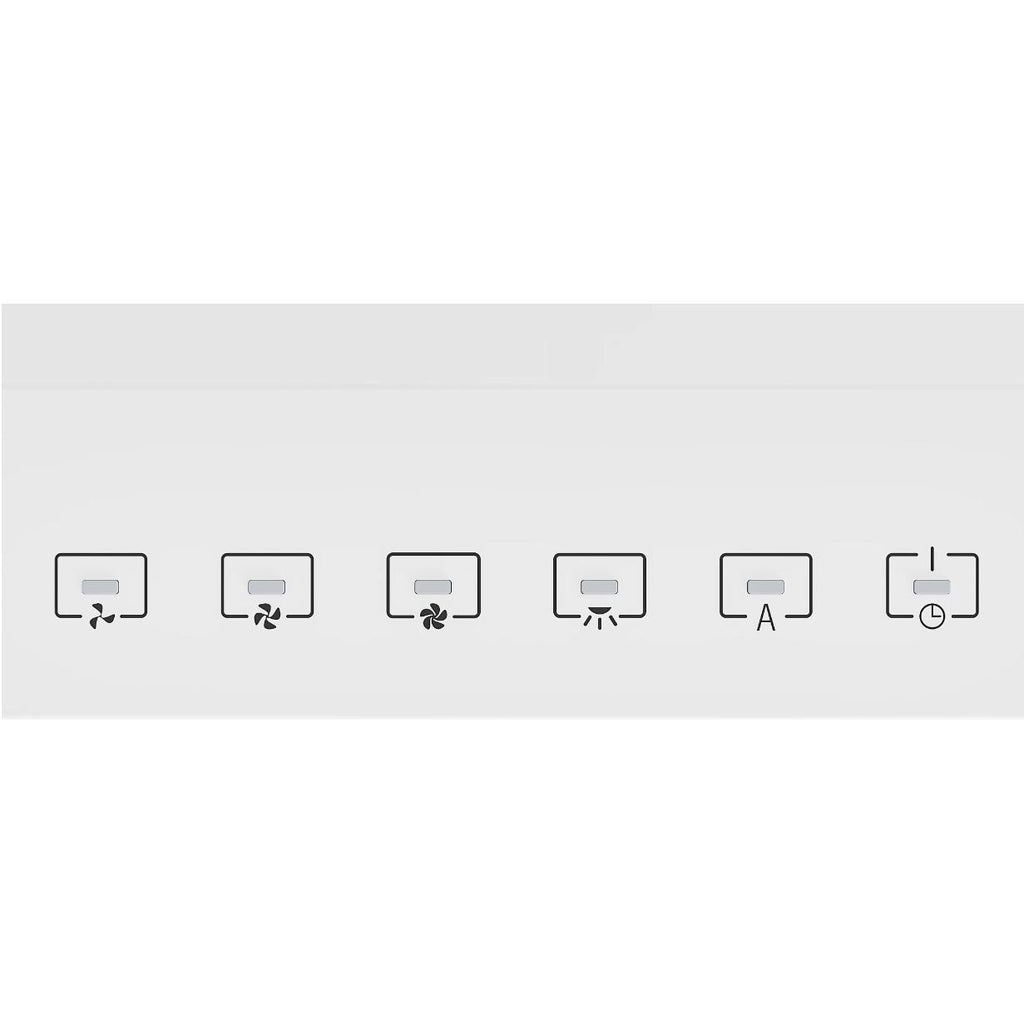

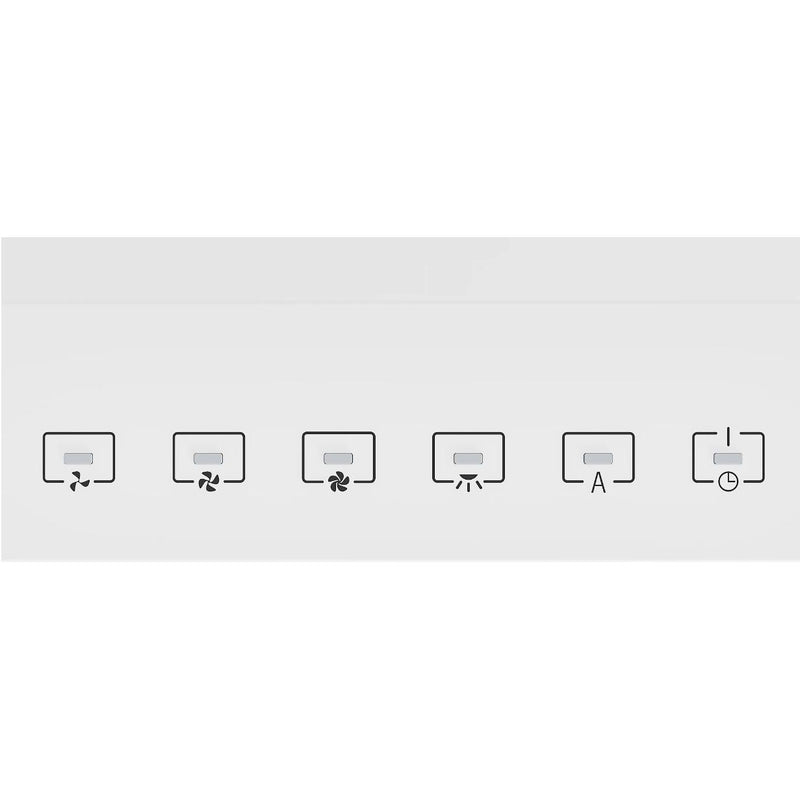

• The infrared controls allow for manual operation to adjust the 3-speed blower and 2 level lighting
• Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
• Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
• Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
• Can be installed for ADA Compliance with the purchase of model HAWSK3 low voltage wiring and wall switch kit
• Filter Type: Hybrid Baffle
• Lighting Type: LED
• Sound Level (Sones): 1.1
• Light Bulb Wattage: 5
• Light Levels: 2
• Material: Stainless Steel
• Ductless Recirculation Capable
• Ductless Filter Or Kit Included
• Switch Control Type: Infrared
• Country of Origin: China
• Up to 71% Quieter: With sound equivalent to a refrigerator running, this vent hood is up to 71% quieter than competition at 1.1 sones on working speed
• One Person Installation: With the included EZ1 brackets it's an easy install for a single person in half the time, both professional and DiYers
• Both ENERGY STAR certified and Title 24 compliant (with electric ranges only), this kitchen hood is energy efficient and code compliant
• Bright 2-level, heat resistant LED modules (included) to enhance your cooking experience
• Easy-to-clean, fully enclosed bottom with 2 dishwasher-safe high efficiency hybrid baffle filters
• The infrared controls allow for manual operation to adjust the 3-speed blower and 2 level lighting
• Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HPF30)
• Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
• Can be used with optional Universal make-up air damper MD6TU, MD8TU or MD10TU to replace air exhausted out of the house only when the hood is turned ON, helping with ventilation to keep your home fresh while reducing energy consumption
• Can be installed for ADA Compliance with the purchase of model HAWSK3 low voltage wiring and wall switch kit
• Filter Type: Hybrid Baffle
• Lighting Type: LED
• Sound Level (Sones): 1.1
• Light Bulb Wattage: 5
• Light Levels: 2
• Material: Stainless Steel
• Ductless Recirculation Capable
• Ductless Filter Or Kit Included
• Switch Control Type: Infrared
• Country of Origin: China
Electrical Information
Information
• Rated Voltage: 120
• Rated Amps: 1.6
• Capture Efficiency: 98.1%
• Wattage: 168
• Rated Amps: 1.6
• Capture Efficiency: 98.1%
• Wattage: 168
Certifications and Approvals
Hvi Certified
Yes
Energy Star Certified
Yes
Accessories
Included
Damper Included
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
5.12 inch(es) / 13 cm
Depth
20.06 inch(es) / 50.95 cm
Additional Dimensions
Minimum Height Above Cooktop: 18"
Warranty
Warranty
1 Year, 3 Year LED module
