Specifications
General
Series
MAT24
Type
Coin
Motor
0.5 hp
Maximum Speed
700 rpm
G-Force
144 g
Color
White
Manufacturer Color
White
Water Consumption
• Average Total Water Usage Per Cycle — gallons (liters): 18.26 (69.1)
• Average Hot Water Usage Warm Water Cycle — gallons (liters): 0.95 (3.5)
• Average Hot Water Usage Hot Water Cycle — gallons (liters): 6.33 (23.9)
• Water Factor: 5.5
• Modified Energy Factor: 1.73
• Operating Pressure — psi (bar): 20–100 (1–8)
• Average Hot Water Usage Warm Water Cycle — gallons (liters): 0.95 (3.5)
• Average Hot Water Usage Hot Water Cycle — gallons (liters): 6.33 (23.9)
• Water Factor: 5.5
• Modified Energy Factor: 1.73
• Operating Pressure — psi (bar): 20–100 (1–8)
Features
Technologies
Intelligent Controls with M-Series Technology
Digital Temperature Display
Yes
Additional Information

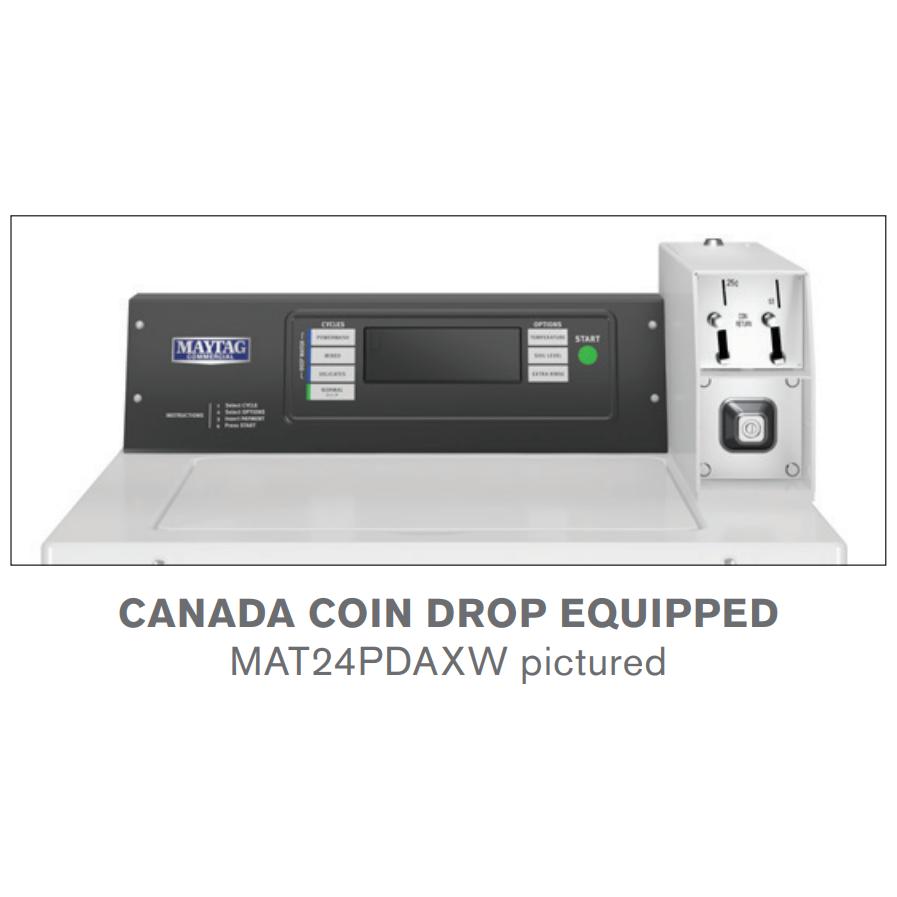

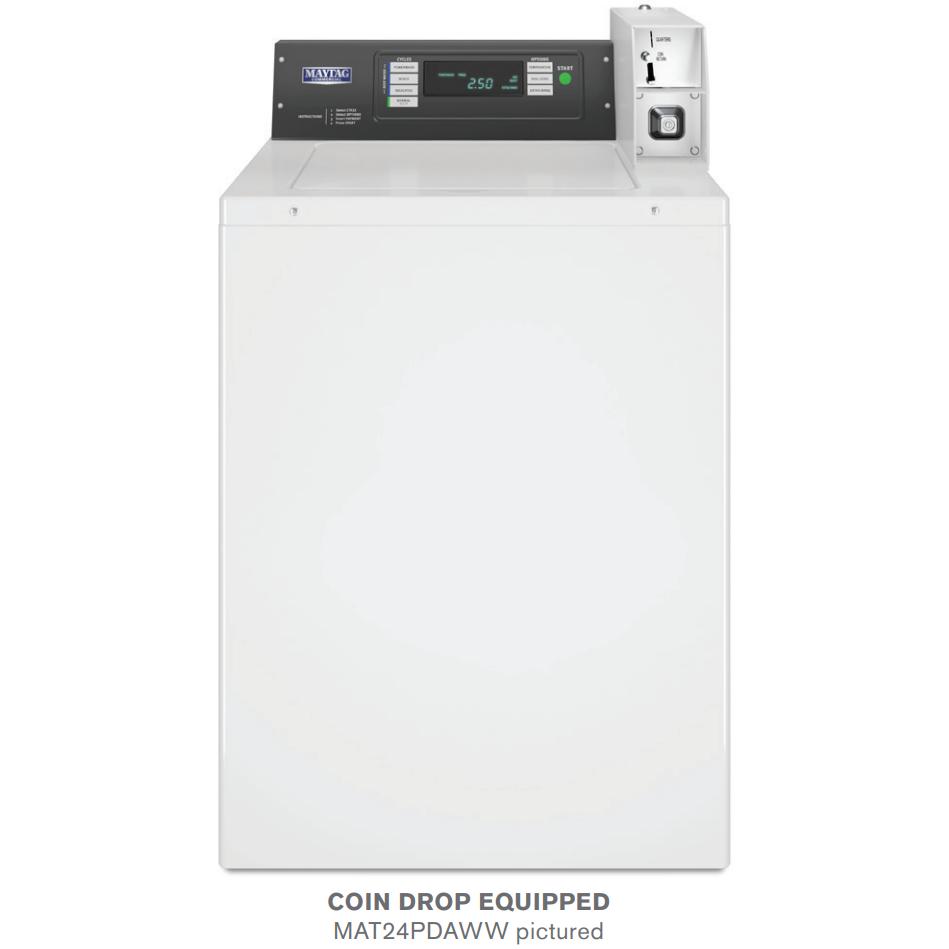

• Payment Configuration: Coin Drop Equipped
• Provides optimal wash performance with deep-water wash and rinse cycle options for vigorous cleaning action
• Traditional flex-vane agitator provides four distinct wash profiles — from aggressive to gentle — designed to pull clothes from the top to the bottom of the wash basket
• PowerWash® cycle provides more agitation, hotter water, and an extra rinse for the dirtiest loads
• Powered by a ½ hp PSC motor and fin design
• Alternates between four distinct wash patterns — from aggressive to gentle
• Generates outstanding clothes movement and extensive deep-cleaning action to tackle a variety of loads
• Heavy-duty front panel — robust and easy to remove
• Front-panel accessibility — provides fast entry to the motor, transmission, and wash tub for streamlined self-service
• Built-in, easy-to-use diagnostics — help servicers identify problems quickly
• Watertight, flexible, triple-lip seal — helps keep moisture safely away from the shaft and protects the premium bearings
• USB port enables the import and export of cycle settings, audit data, and software updates
• Get flexibility and individual cycle pricing options for optimal earnings through Intelligent Controls with M-Series Technology, while end users can easily choose their preferred wash experience with one-touch cycle selection (MAT24PD and MAT24PR)
• Provides optimal wash performance with deep-water wash and rinse cycle options for vigorous cleaning action
• Traditional flex-vane agitator provides four distinct wash profiles — from aggressive to gentle — designed to pull clothes from the top to the bottom of the wash basket
• PowerWash® cycle provides more agitation, hotter water, and an extra rinse for the dirtiest loads
• Powered by a ½ hp PSC motor and fin design
• Alternates between four distinct wash patterns — from aggressive to gentle
• Generates outstanding clothes movement and extensive deep-cleaning action to tackle a variety of loads
• Heavy-duty front panel — robust and easy to remove
• Front-panel accessibility — provides fast entry to the motor, transmission, and wash tub for streamlined self-service
• Built-in, easy-to-use diagnostics — help servicers identify problems quickly
• Watertight, flexible, triple-lip seal — helps keep moisture safely away from the shaft and protects the premium bearings
• USB port enables the import and export of cycle settings, audit data, and software updates
• Get flexibility and individual cycle pricing options for optimal earnings through Intelligent Controls with M-Series Technology, while end users can easily choose their preferred wash experience with one-touch cycle selection (MAT24PD and MAT24PR)
Electrical Information
Information
• Voltage: 120V – 60 Hz
• Breaker/Fuse — Amps: 15
• Breaker/Fuse — Amps: 15
Certifications and Approvals
Information
• UL
• CSA
• CSA
Dimensions
Width
27 inch(es) / 68.58 cm
Height
44.5 inch(es) / 113.03 cm
Depth
27 inch(es) / 68.58 cm
Weight
159 lb(s) / 72.12 kg
Additional Dimensions
• Inlet Hose Length — ft (m): 6 (1.8)
• Drain Hose Length — ft (m): 4 (1.3)
• Lid Opening — in. (mm): 17 (432)
• Drain Hose Length — ft (m): 4 (1.3)
• Lid Opening — in. (mm): 17 (432)
Shipping Dimensions
Width
29 inch(es) / 73.66 cm
Height
49 inch(es) / 124.46 cm
Depth
27.5 inch(es) / 69.85 cm
Weight
177.01 lb(s) / 80.29 kg
Warranty
Warranty
5-Year limited parts only
