Specifications
General
Series Name
MDE20
Type
Coin
Fuel Type
Electric
Color
White
Manufacturer Color
White
Cylinder Volume
7.4 cu. ft.
Airflow
178 CFM
Features
Technologies
Intelligent Controls with M-Series Technology
Digital Temperature Display
Yes
Additional Information

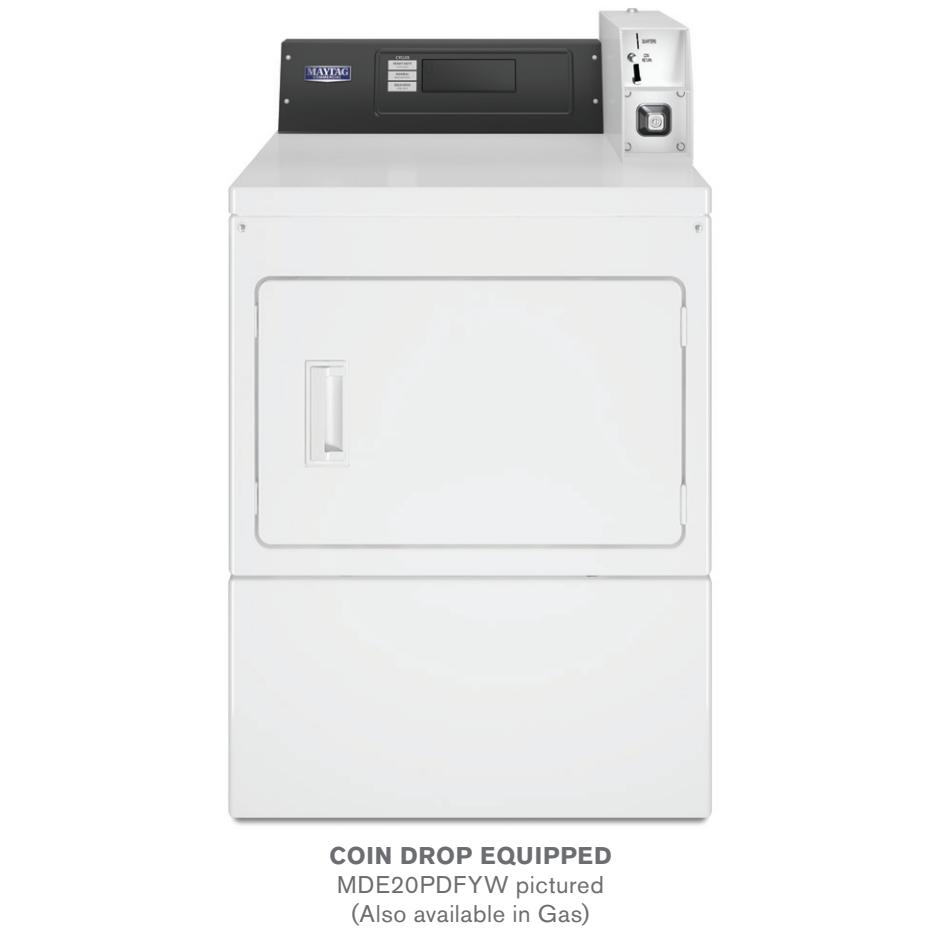

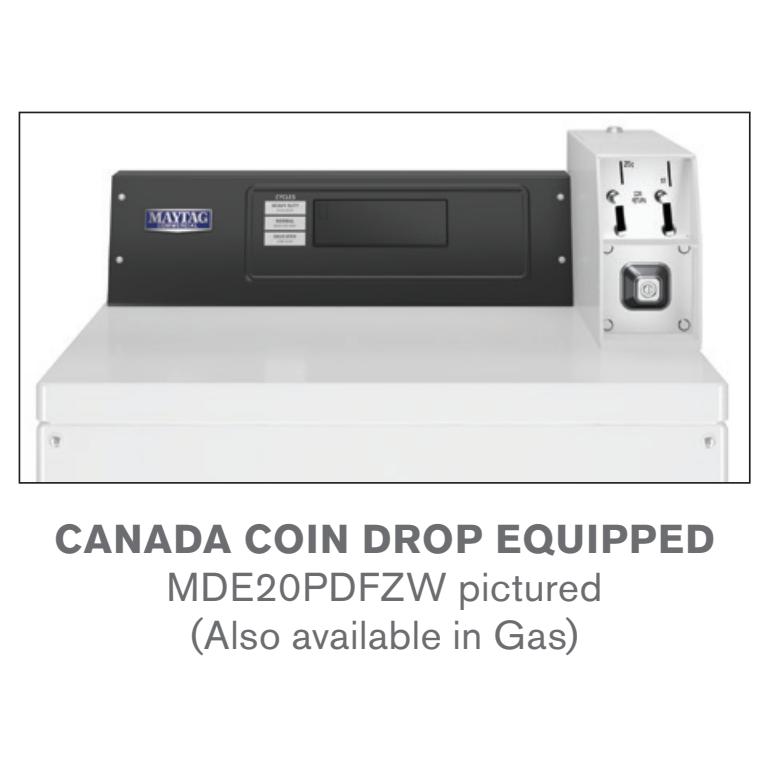

• Payment Configuration: Coin Drop Equipped
• Provides fast entry to internal components for streamlined self-service
• Get flexibility and individual cycle pricing options for optimal earnings through Intelligent Controls with M-Series Technology, while end users can easily choose their preferred wash experience with one-touch cycle selection (MDE/G20PD and MDE/G20PR)
• USB port enables the import and export of cycle settings, audit data, and software updates
• 7.4 cu. ft. capacity dryer allows for large loads to be dried efficiently and effectively
• Delivers an optimal drying experience for users and helps maximize productivity
• Porcelain enamel top — a durable finish that stands up to the demands of high traffic
• Full-wrap console — designed to help protect the internal components
• Extra-large reversible door — provides users unhindered access while loading and unloading
• Motor Size — HP (kW): 1 /3 (.25)
• Provides fast entry to internal components for streamlined self-service
• Get flexibility and individual cycle pricing options for optimal earnings through Intelligent Controls with M-Series Technology, while end users can easily choose their preferred wash experience with one-touch cycle selection (MDE/G20PD and MDE/G20PR)
• USB port enables the import and export of cycle settings, audit data, and software updates
• 7.4 cu. ft. capacity dryer allows for large loads to be dried efficiently and effectively
• Delivers an optimal drying experience for users and helps maximize productivity
• Porcelain enamel top — a durable finish that stands up to the demands of high traffic
• Full-wrap console — designed to help protect the internal components
• Extra-large reversible door — provides users unhindered access while loading and unloading
• Motor Size — HP (kW): 1 /3 (.25)
Electrical Information
Information
• Voltage: 240V, 60Hz
• Breaker/Fuse — amps: 30
• Electric Heating Element (watts): 5,250
• Breaker/Fuse — amps: 30
• Electric Heating Element (watts): 5,250
Certifications and Approvals
Information
• UL
• CSA
• CSA
Dimensions
Width
27 inch(es) / 68.58 cm
Height
41 inch(es) / 104.14 cm
Depth
29.25 inch(es) / 74.3 cm
Weight
125 lb(s) / 56.7 kg
Additional Dimensions
• Cylinder Diameter — in. (mm): 26.26 (667)
• Cylinder Depth — in. (mm): 23.2 (590)
• Cylinder Depth — in. (mm): 23.2 (590)
Shipping Dimensions
Width
28.8 inch(es) / 73.15 cm
Height
44.65 inch(es) / 113.41 cm
Depth
30.8 inch(es) / 78.23 cm
Weight
135.01 lb(s) / 61.24 kg
Warranty
Warranty
5-Year limited parts only
