Features

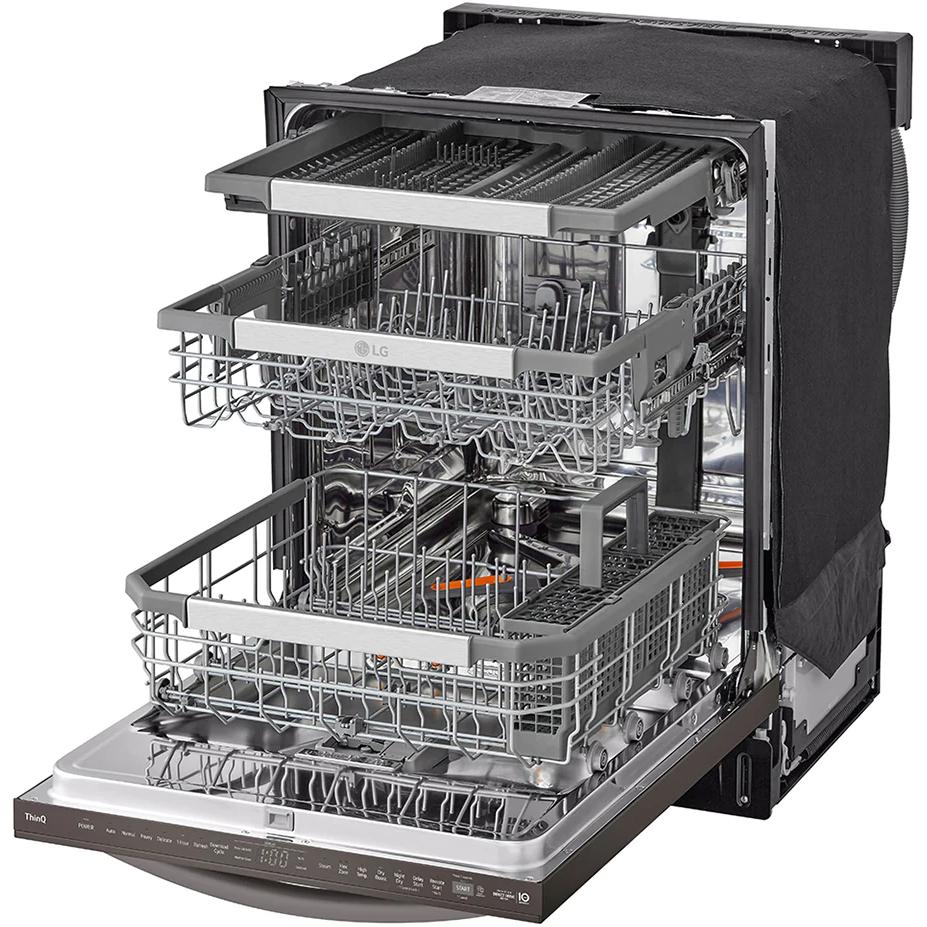

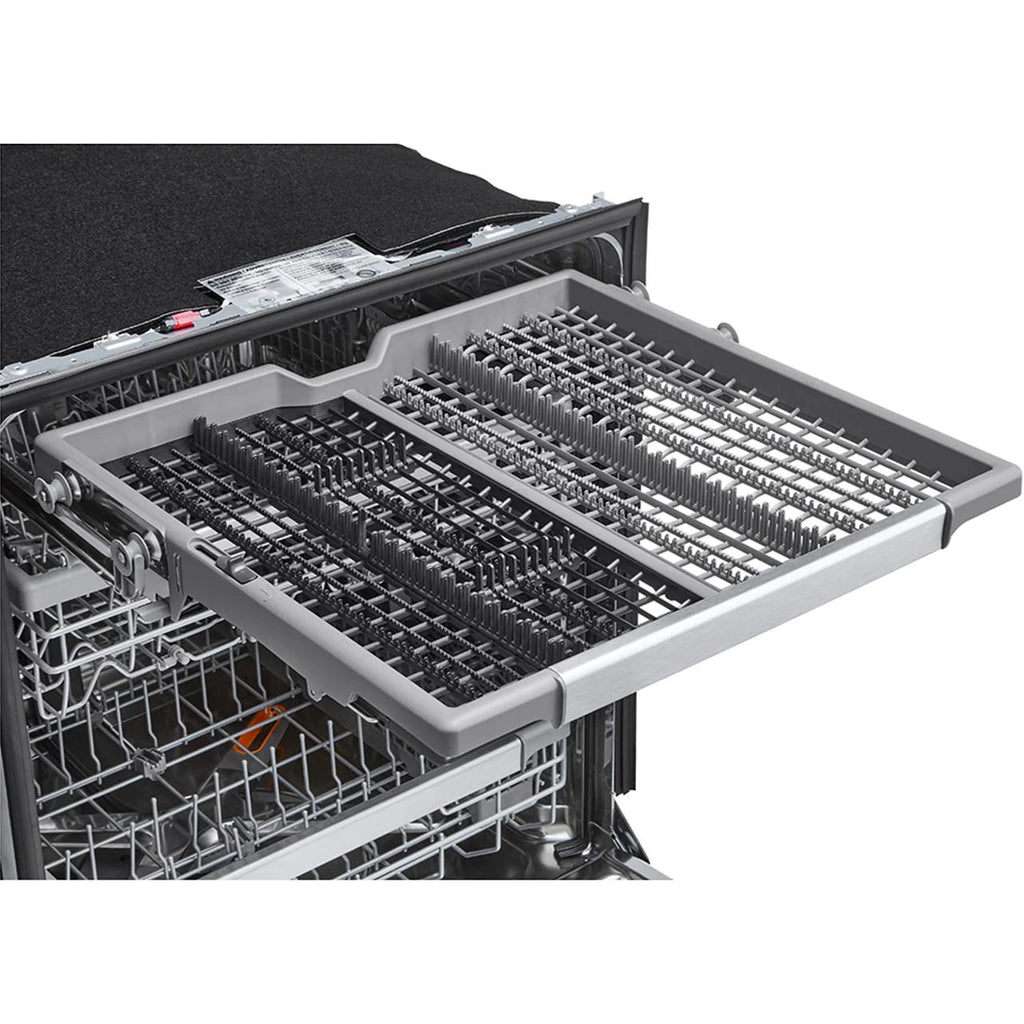

3RD RACK
The height adjustable 3rd rack gives you more space to fit everything from long flatware to small espresso cups.

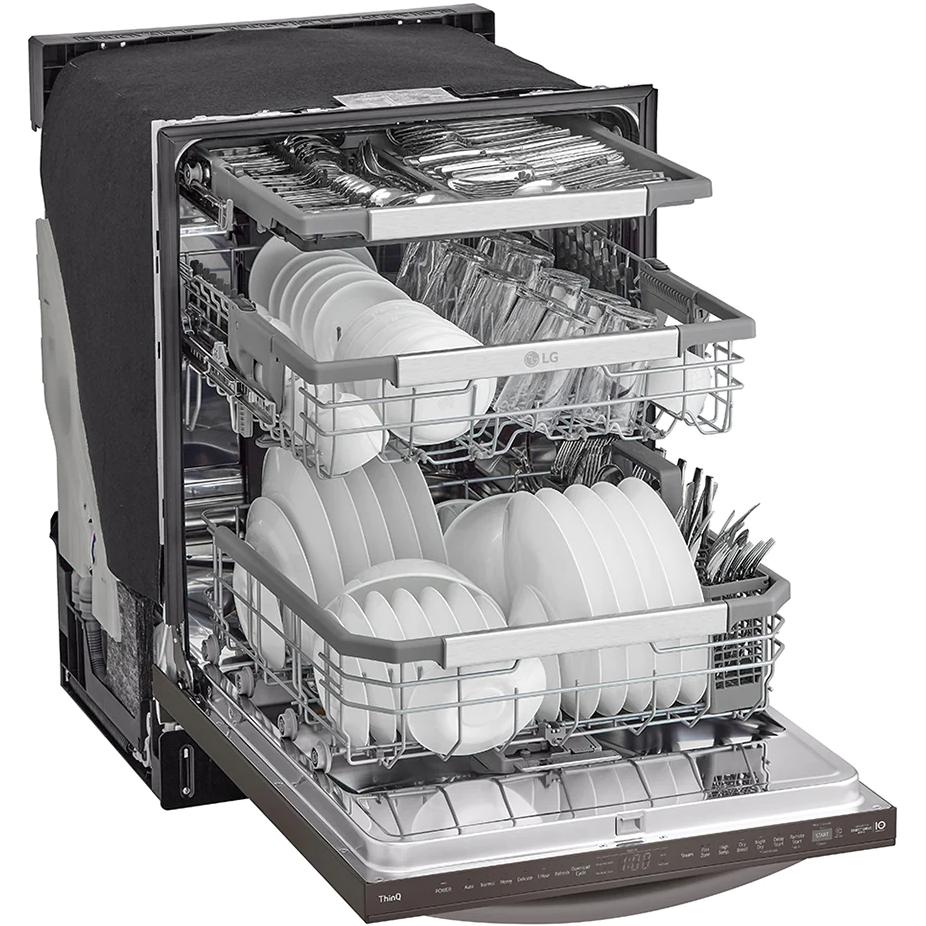

EASYRACK™ PLUS
EasyRack™ Plus system provides outstanding flexibility and convenience, adjusting to just about any load of dishes to help ensure optimal cleaning performance. Easy to adjust on-the-fly, this racking system can shift to handle any challenge your dishes can serve up.
LODECIBEL™
LG’s technological advances, like the Inverter DirectDrive motor and the advanced self-cleaning filtration system, were designed with quiet in mind.
NEVERRUST™

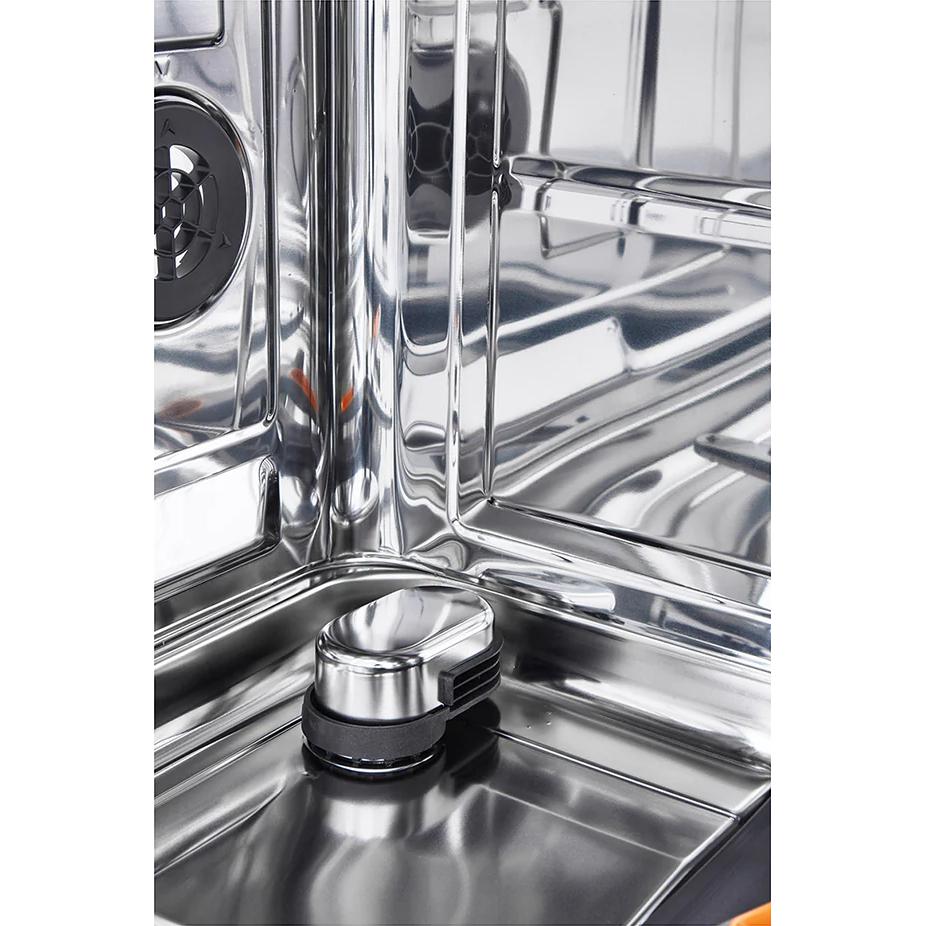

The NeverRust™ Stainless steel interior tub helps improve drying performance and resists rust for years to come.

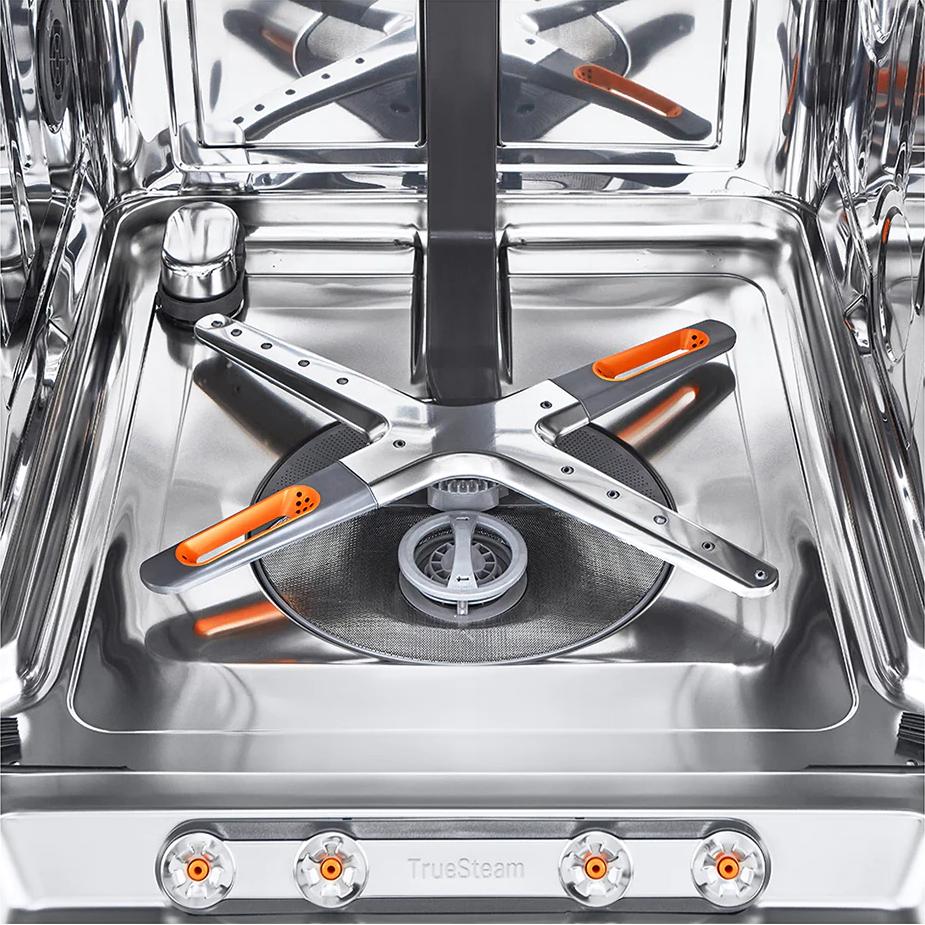

QUADWASH™
Achieve maximum cleaning coverage throughout the entire cycle with LG’s new QuadWash™ system. With four spray arms instead of just two, QuadWash™ also includes Multi-Motion arms that rotate back and forth while spinning. The high-pressure jets power-clean dishes from multiple angles to reach every nook and cranny.
TRUESTEAM®
Powerful yet gentle TrueSteam™ virtually eliminates the need to pre-wash. The built-in TrueSteam™ generator also enables gentle cleaning for fragile items (like stemware), and can be added as an optional enhancement to other cycles for heavy-duty cleaning.
VARIO WASH
Enables users to vary the intensity in the upper and lower racks (e.g. delicates in the upper rack, and pots & pans in the lower rack with strong setting), accommodating different items in the same load.
Additional Features
AUTO CYCLE
LG Auto Cycle you have one less thing to think about- this feature automatically senses the soil level on your dishes and sets the wash cycle, so your dishes get optimal cleaning every time.
DELAY START UP TO 12H
This feature delays the start of a selected cycle.
Each time the Delay Start button is pressed, the
delay time increases by an hour. The delay time
can be set from 1 to 12 hours, in one-hour
increments.
SENSECLEAN SYSTEM ™
Measures turbidity in the water with an LED light during
the first rinse. Then water and time is adjusted during the
second cycle based on the need for more or less cleaning.
This provides precise cleaning, water and energy efficiency.
Specifications
General
Type
Built-In
Color
Black Stainless
Manufacturer Color
Black Stainless Steel
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information

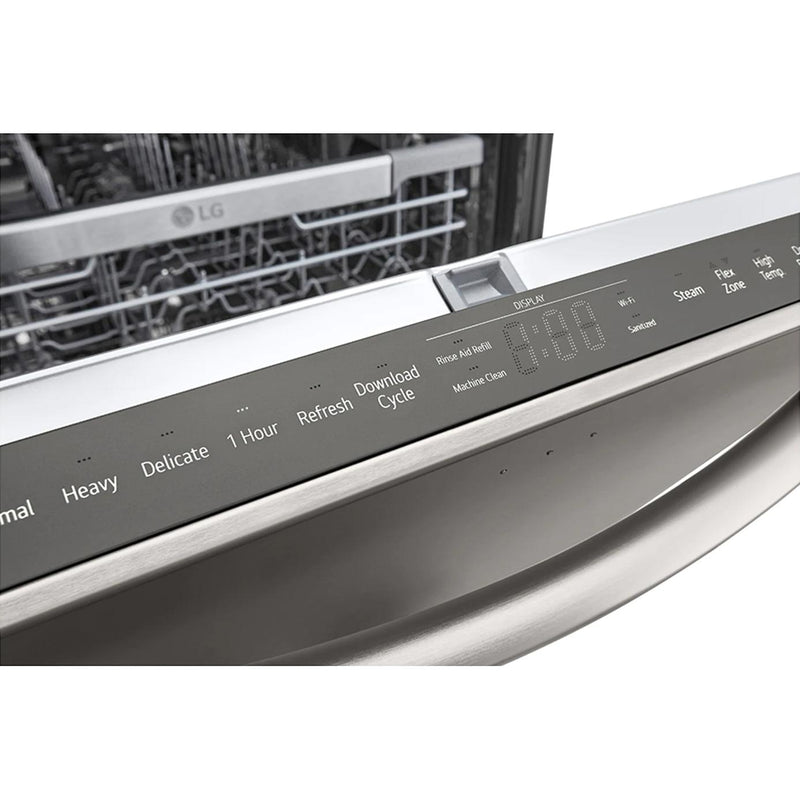

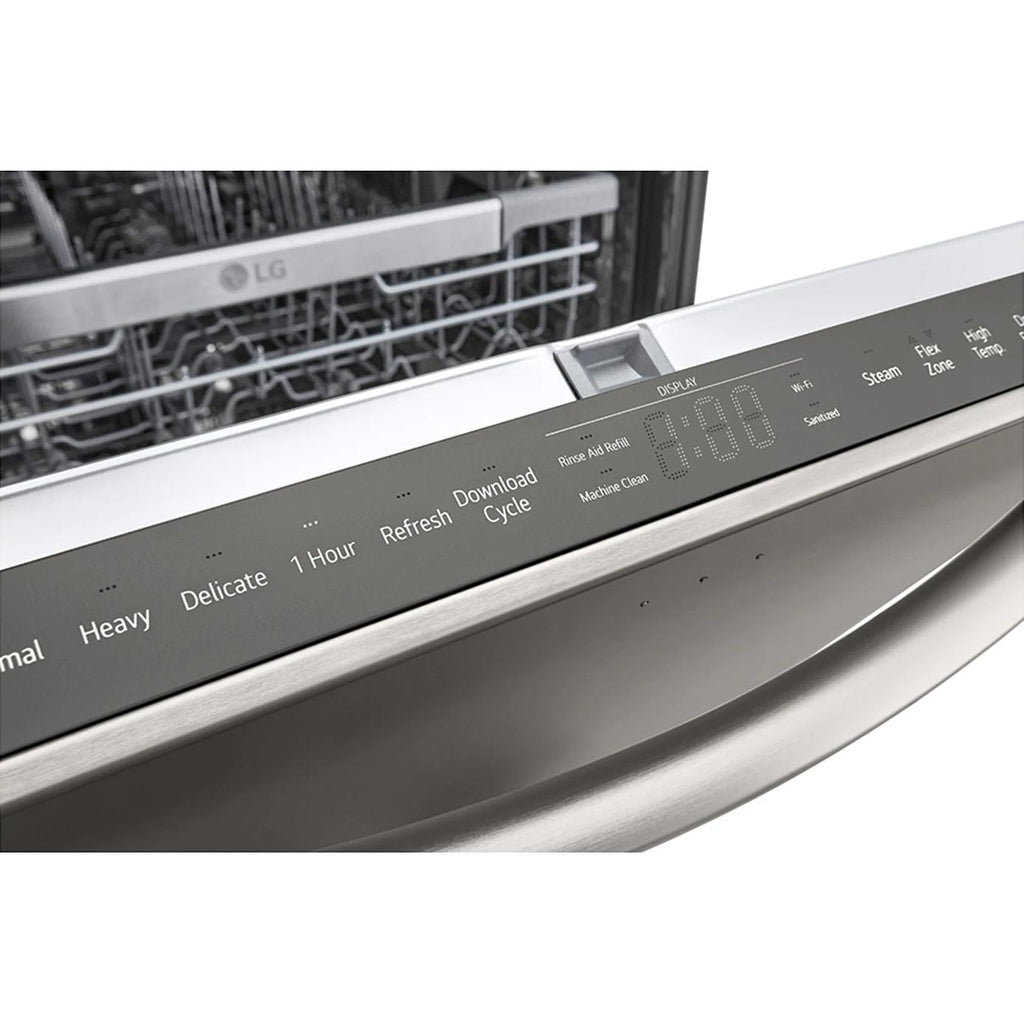

Wash Cycles
• Auto
• Delicate
• Normal
• Heavy
• Refresh
• Turbo
Download Cycle:
• Rinse
• Machine Clean
• Express
• Delicate
• Normal
• Heavy
• Refresh
• Turbo
Download Cycle:
• Rinse
• Machine Clean
• Express
Options
• Flex Zone
• Steam
• High temp
• Dry Boost
• Control Lock
• Night Dry
• Remote Start
• Steam
• High temp
• Dry Boost
• Control Lock
• Night Dry
• Remote Start
Features
Technologies
• TrueSteam™
• QuadWash™ Pro
• SenseClean Wash System
• NeveRust™ Stainless Steel
• DirectDrive Motor™
• QuadWash™ Pro
• SenseClean Wash System
• NeveRust™ Stainless Steel
• DirectDrive Motor™
Delay Start Information
Up to 12 hours
Delay Start
Yes
3rd Rack System
Yes
Control Lock
Yes
Silverware Basket
Yes
Wi-Fi
Yes
Additional Information
• Vario Wash
• 3 Spray arms (Top, Upper, Lower)

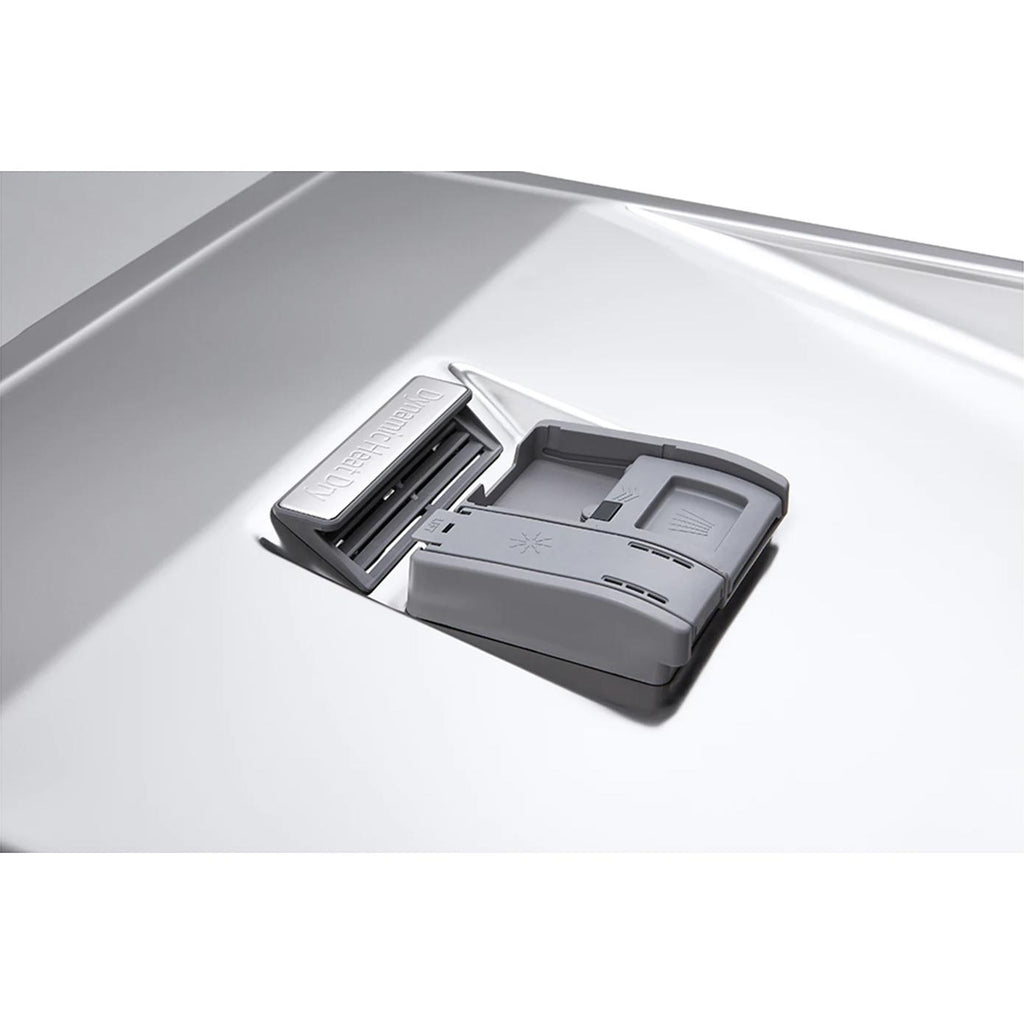

• Detergent and Rinse-Aid Dispenser
• Drying System: Dynamic Heat Dry
• End of Cycle Indicator: Beeper + END indication on display
• Hidden Water Heater
• Safety Float Switch (Leaks)
• Soil (Turbidity) Sensor

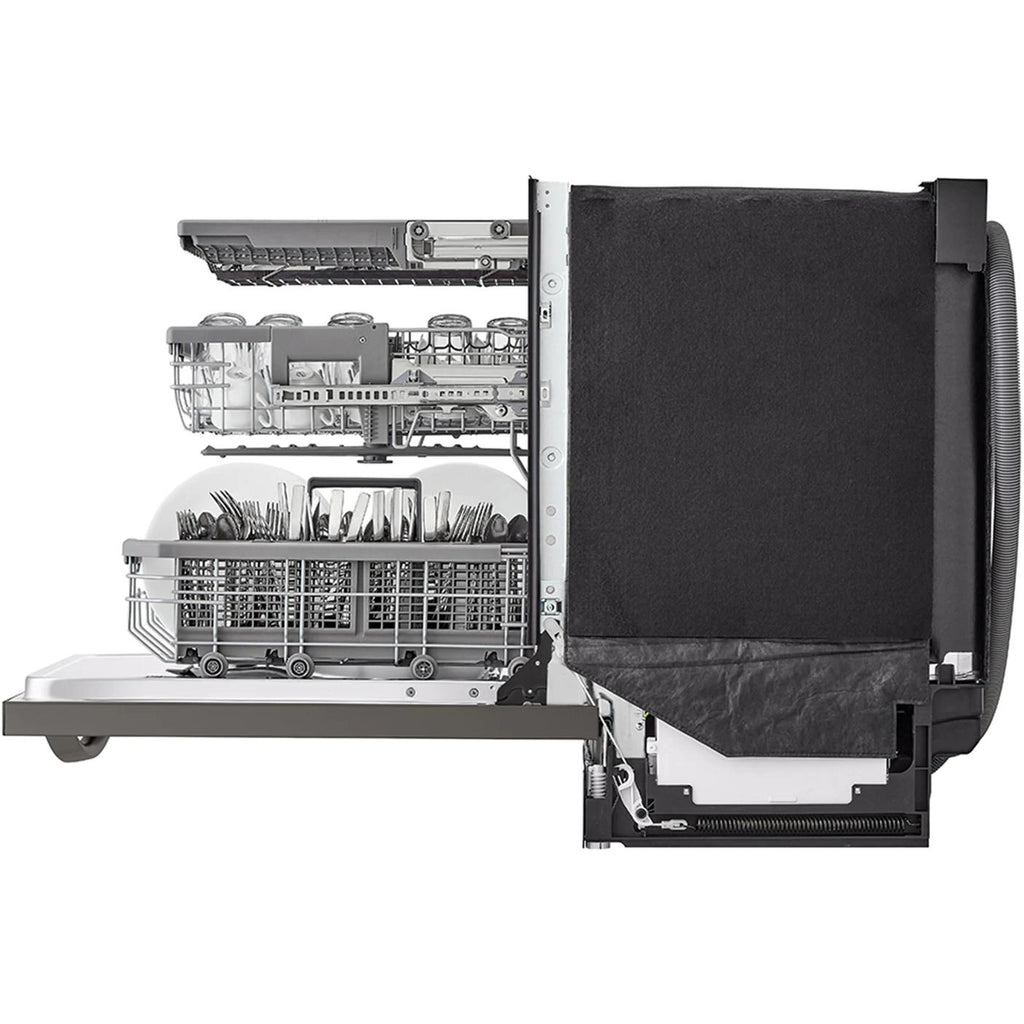

• Tub Insulation: Damping Sheet, Sound Absorbing Material (felt), Base
• BPA-Free Nylon Coated Racks and Tines
• Anti-Bacterial Treatment (Drain hose)
• Balanced Door
• Status Indicators: 3 Indicator Lights
• Remaining Time indicator: LED
• Adaptive Rack System
• Rack System/Grade: EasyRack plus/Best
• Fold Down Tines (Upper): Fully
• Fold Down Tines (Lower): Fully (Smart)
• Rack Color (Handle): Noble Grey
• Rack Color (Tine): Silver
• Cup rack
• Cuprack color: Dark Grey
• Stemware Holder
• Height Adjustability: Easy One Touch (3 Level)
• Height Adjustable 3rd Rack (Best)
• Gliding Type (Upper): Gliding Rail
• Gliding Type (Lower): Gliding Wheel
• Quad Arm:
• STS Deco
• Body Color: Noble Grey
• Nozzle Color: Orange(MAJ)
• 3 Spray arms (Top, Upper, Lower)
• Detergent and Rinse-Aid Dispenser
• Drying System: Dynamic Heat Dry
• End of Cycle Indicator: Beeper + END indication on display
• Hidden Water Heater
• Safety Float Switch (Leaks)
• Soil (Turbidity) Sensor
• Tub Insulation: Damping Sheet, Sound Absorbing Material (felt), Base
• BPA-Free Nylon Coated Racks and Tines
• Anti-Bacterial Treatment (Drain hose)
• Balanced Door
• Status Indicators: 3 Indicator Lights
• Remaining Time indicator: LED
• Adaptive Rack System
• Rack System/Grade: EasyRack plus/Best
• Fold Down Tines (Upper): Fully
• Fold Down Tines (Lower): Fully (Smart)
• Rack Color (Handle): Noble Grey
• Rack Color (Tine): Silver
• Cup rack
• Cuprack color: Dark Grey
• Stemware Holder
• Height Adjustability: Easy One Touch (3 Level)
• Height Adjustable 3rd Rack (Best)
• Gliding Type (Upper): Gliding Rail
• Gliding Type (Lower): Gliding Wheel
• Quad Arm:
• STS Deco
• Body Color: Noble Grey
• Nozzle Color: Orange(MAJ)
Electrical Information
Information
Energy Use (kWh/Year): 238
Certifications and Approvals
Energy Star Certified
Yes
Information
CEE Tier Level: 1
Dimensions
Class Width
24"
Width
23.75 inch(es) / 60.33 cm
Height (Min.)
36 inch(es) / 91.44 cm
Depth (Including Handle)
26.81 inch(es) / 68.1 cm
Weight
97 lb(s) / 44 kg
Additional Dimensions
• Depth with Door Open: 49 1/4"
• Clearances (WxDxH): 24" x 24" x 33 5/8"
• Height Adjustability: Easy One Touch (3 Level)Maximum Height of Upper Rack: 7.1inch (180mm)
• Maximum Height of Lower Rack: 12.5inch(320mm)
• Clearances (WxDxH): 24" x 24" x 33 5/8"
• Height Adjustability: Easy One Touch (3 Level)Maximum Height of Upper Rack: 7.1inch (180mm)
• Maximum Height of Lower Rack: 12.5inch(320mm)
Shipping Dimensions
Width
28.03 inch(es) / 71.2 cm
Height
34.87 inch(es) / 88.58 cm
Depth
29.67 inch(es) / 75.37 cm
Weight
109.13 lb(s) / 49.5 kg
Warranty
Warranty
• For USA Labor : 1 year from the Date of original Purchase
• All parts: 1 years from the Date of original Purchase
• 5 year limited warranty: For the period of 5 year from the Date of original Purchase, PCB or Rack of the dishwasher, which fails due to a defect in materials or workmanship, will be replaced by LG Electronics USA, Inc
• 10 year limited warranty: For the period of 5 year from the Date of original Purchase, Washing Motor Customer will be responsible for any labor or in-home service costs after the first year
• Lifetime limited warranty: For the period of Lifetime from the Date of original Purchase, Stainless steel Door liner or Tub of the dishwasher, which fails to contain water due to a defect in materials or workmanship, will be replaced by LG Electronics USA, Inc. Customer will be responsible for any labor or in-home service costs after the first year
• All parts: 1 years from the Date of original Purchase
• 5 year limited warranty: For the period of 5 year from the Date of original Purchase, PCB or Rack of the dishwasher, which fails due to a defect in materials or workmanship, will be replaced by LG Electronics USA, Inc
• 10 year limited warranty: For the period of 5 year from the Date of original Purchase, Washing Motor Customer will be responsible for any labor or in-home service costs after the first year
• Lifetime limited warranty: For the period of Lifetime from the Date of original Purchase, Stainless steel Door liner or Tub of the dishwasher, which fails to contain water due to a defect in materials or workmanship, will be replaced by LG Electronics USA, Inc. Customer will be responsible for any labor or in-home service costs after the first year
UPC
UPC#
48231344180
