Features

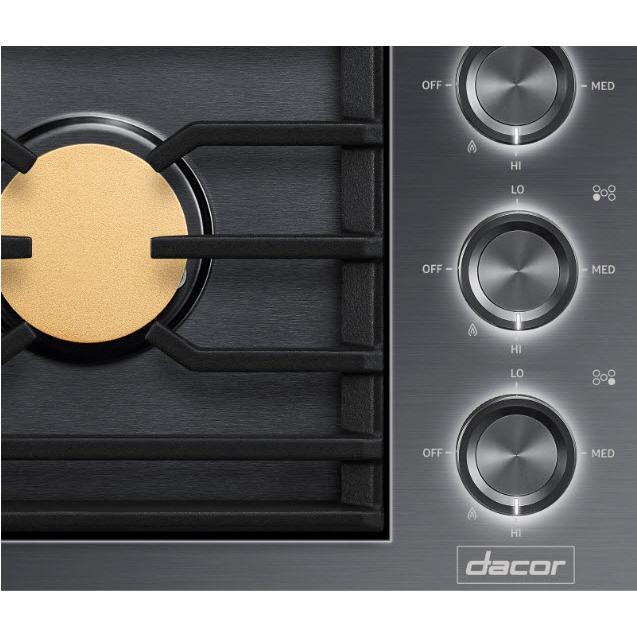

ILLUMINA™ BURNER CONTROLS
Unique to Dacor with their signature glow, pair easy control of each burner with a modern luminosity that always looks cool even at ultra-high temperatures. Genius is beautiful, isn’t it?

DUAL-STACK SEALED BRASS BURNERS
Dual-stack sealed brass burners for high performance and efficiency.

DIAMOND-LIKE CARBON FINISH
On spill tray prevents scratches and is easy to clean.

Specifications
General
Series Name
Modernist
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Natural Gas
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Left Front (BTU): 13,000 (Stack Burner)
• Left Rear (BTU): 13,000 (Stack Burner)
• Center (BTU): 18,500 Dual (Dual Burner)
• Right Front (BTU): 9,500 Stack (Stack Burner)
• Right Rear (BTU): 9,500 Stack (Stack Burner)
• Left Rear (BTU): 13,000 (Stack Burner)
• Center (BTU): 18,500 Dual (Dual Burner)
• Right Front (BTU): 9,500 Stack (Stack Burner)
• Right Rear (BTU): 9,500 Stack (Stack Burner)
Burners
Sealed
Surface Features
Diamond-Like Carbon Finish
Features
Technologies
• Dacor iQ Kitchen App
• Illumina™ Knobs
• Illumina™ Knobs
Wi-Fi
Yes
Downdraft Ventilation
No
Additional Information
• Low Profile Flush Installation
• Auto Connect to Hood
• Automatic Burner Reignition
• Continuous Grates
• Diamond-Like Carbon Finish
• Dual-Stack Sealed Brass Burners
• Auto Connect to Hood
• Automatic Burner Reignition
• Continuous Grates
• Diamond-Like Carbon Finish
• Dual-Stack Sealed Brass Burners
Accessories
Included
Propane converter kit included
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
6 inch(es) / 15.24 cm
Depth
21 inch(es) / 53.34 cm
Additional Dimensions
Required Cutout Size (W x D) (in.): 34 1/2" x 19 1/2"
Warranty
Warranty
One year parts and labor
UPC
UPC#
847364019459
