Features
STEELCOOL INTERIOR WITH 3D LIGHTING
With the alluring glow of seamlessly integrated LED lighting, a fully-wrapped all stainless steel interior and the intelligence to sense and adjust to brightness to reflect lighting in the room, food is no longer just stored, it's presented.
SPACEMAX EXTRA-LARGE CAPACITY
Utilizing cutting-edge insulation technology, SpaceMax offers industry-leading maximum storage capacity without sacrificing exterior style.
DUAL ICEMAKER WITH COCKTAIL ICE
One icemaker creates standard cubes. The other makes bigger, longer lasting cocktail ice that's perfect for entertaining. Together, they create a constant supply of ice, ensuring no drink goes unchilled.
PANEL-READY, SILVER OR GRAPHITE STAINLESS STEEL
All columns come panel-ready for your custom wood paneling, allowing them to integrate beautifully into any kitchen design, or choose from silver or graphite stainless steel finishes to ensure that your kitchen will be ready for your performance.
Additional Features
PUSH-TO-OPEN™
Whether you choose a handle or handle-free design, with a simple tap, the refrigerator door will spring to life, gently opening itself. So, you get all the benefits of industrial-strength cooling without the need for an industrial-strength grip.
HIDDEN TOUCH CONTROL PANEL
Revealing itself upon touch, the control panel allows you to set the ideal temperature while preserving the sleek aesthetics of the stainless-steel wrapped interior.
PRECISECOOLING
Powerful cooling technology that keeps temperature fluctuation at a minimum for maximized food preservation.
DEDICATED COMPRESSOR AND EVAPORATOR FOR EACH COLUMN
A dedicated compressor and evaporator for each of the freezer columns maintains dry freezer conditions for less freezer burn resulting in better tasting frozen foods.

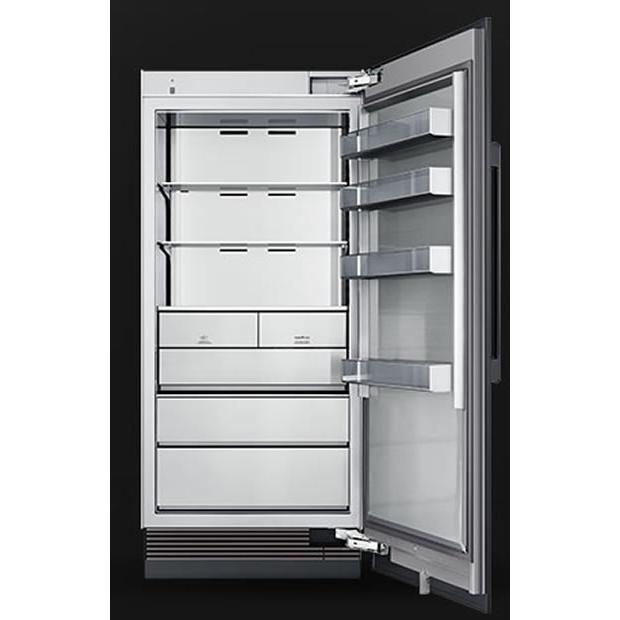

FULL-EXTENSION DRAWERS
Stainless steel wrapped drawers smoothly open to full capacity to accommodate dishes of every size.
Specifications
General
Series Name
Modernist
Style
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Total Capacity
21.1 cu. ft.
Size Range
21 cu.ft. - 22 cu.ft.
Door Hinge
Right
Features
Technologies
• 3DLighting™
• Cocktail Ice™
• Push-To-Open™
• SteelCool™ Stainless Steel Interior
• Best-in class food preservation with dedicated evaporator/compressor and Precise Cooling Technology
• Cocktail Ice™
• Push-To-Open™
• SteelCool™ Stainless Steel Interior
• Best-in class food preservation with dedicated evaporator/compressor and Precise Cooling Technology
Defrost System / Frost Free
Yes
Lighting
Yes
Baskets
Yes
Additional Information
• Freezer 5°F (-15°C) to -8°F (-23°C)
• Freezer - Power Freeze -8°F (-23°C)
• Dedicated Evaportator & Compressor System
• Power Freeze
• Tempered, Metal Trim, SpillProof Shelves
• 4 Door Bins
• 2 Freezer Drawers
• 1 Hidden Box with Flip-up Cover
• Full Extension Drawers at 90° Door Opening Angle
• Precise Cooling Minimized Temeprature Fluctuation ±0.36°F* (±0.2°C*)
• Freezer - Power Freeze -8°F (-23°C)
• Dedicated Evaportator & Compressor System
• Power Freeze
• Tempered, Metal Trim, SpillProof Shelves
• 4 Door Bins
• 2 Freezer Drawers
• 1 Hidden Box with Flip-up Cover
• Full Extension Drawers at 90° Door Opening Angle
• Precise Cooling Minimized Temeprature Fluctuation ±0.36°F* (±0.2°C*)
Ice and Water
Ice Machine
Yes
Additional Ice and Water Information
Dual Icemaker for Standard and Cocktail Ice™
Electrical Information
Information
• 3 A
• 115 V
• 60 Hz
• 500 kWh/year
• Plug Type: 120V, 3 Prong V
• 115 V
• 60 Hz
• 500 kWh/year
• Plug Type: 120V, 3 Prong V
Certifications and Approvals
Energy Star Certified
Yes
Sabbath Mode
Yes
Accessories
Optional
• Graphite Stainless Steel - 36" Panel (Left Hinge) RAC36DPLHMS
• Graphite Stainless Steel - 36" Kick Plate RAC36TKBBMS
• Graphite Stainless Steel - Modernist Handle RAC00MHAAMS
• Silver Stainless Steel - 36" Panel (Left Hinge) RAC36DPLHSR
• Silver Stainless Steel - 36" Kick Plate RAC36TKBBSR
• Silver Stainless Steel - Modernist Handle RAC00MHAASR
• Silver Stainless Steel - Dacor Pro Handle RAC00PHAASR
• Pair Installation Kit RAC00CPAAAA
• Water Filter RAC00WFAAAA
• Deodorizing Filter RAC00DFAAAA
• Graphite Stainless Steel - 36" Kick Plate RAC36TKBBMS
• Graphite Stainless Steel - Modernist Handle RAC00MHAAMS
• Silver Stainless Steel - 36" Panel (Left Hinge) RAC36DPLHSR
• Silver Stainless Steel - 36" Kick Plate RAC36TKBBSR
• Silver Stainless Steel - Modernist Handle RAC00MHAASR
• Silver Stainless Steel - Dacor Pro Handle RAC00PHAASR
• Pair Installation Kit RAC00CPAAAA
• Water Filter RAC00WFAAAA
• Deodorizing Filter RAC00DFAAAA
Dimensions
Width
35.75 inch(es) / 90.81 cm
Height (With Hinge)
83.39 inch(es) / 211.8 cm
Depth (Without Handles)
23.82 inch(es) / 60.5 cm
Additional Dimensions
Required Cutout Size (H x W x D) (in.) 84" x 36" x 25"
Warranty
Warranty
• 2 Years Limited, Entire Appliance, Parts and Labor on Any Part of the Freeze
• 3rd to 6th Year Limited Warranty for Sealed Freezer System; Parts and Labor
• 7th to 12th Year Limited Warranty for Sealed Freezer System; Parts Only
• 3rd to 6th Year Limited Warranty for Sealed Freezer System; Parts and Labor
• 7th to 12th Year Limited Warranty for Sealed Freezer System; Parts Only
UPC
UPC#
847364018889
