Documents
Features

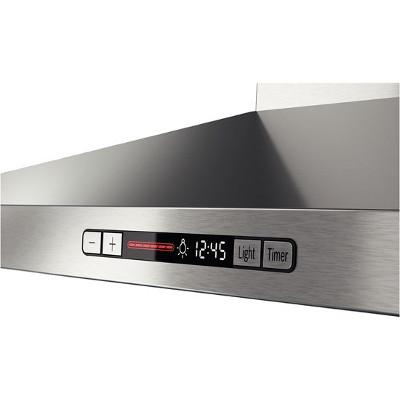

TOUCH CONTROLS WITH LCD DISPLAY
Four speed touch controls with lcd display
DISHWASHER SAFE
Dishwasher safe filters with stainless steel covers
INTEGRATED BLOWER 600 CFM
600 cfm centrifugal integrated blower included
Specifications
General
Series Name
800
Blower Included
Yes
Airflow
600 CFM
Style
Island
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Installation
Island
Features
Dishwasher-Proof Filters
Yes
Ducting Information
Round
Speeds
4
Additional Information
Blower will automatically turn on at high speed if excessive heat is sensed in the control area;Absorb odors with charcoal replacement filters;Convenient timer built into control from 1-60 minutes;Signal on LCD display will illuminate as a reminder to check filters for cleaning;Audible tone when select controls are pressed;4 Halogen Lights - 12 Volt, 20 Watt max., G-4 Base;Approval certificates: CUL, UL;Integrated motor in hood chimney;Grease filter material: washable stainless steel.
Electrical Information
Information
120 V

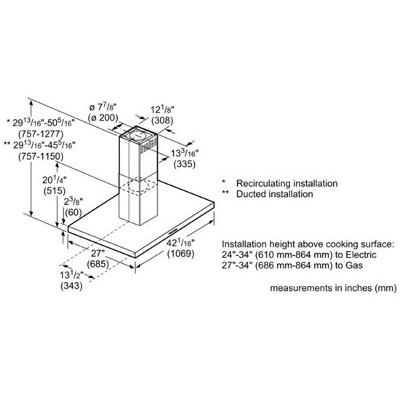

Dimensions
Class Width
42"
Width
42.09 inch(es) / 106.9 cm
Height
29.8 inch(es) / 75.7 cm
Depth
26.97 inch(es) / 68.5 cm
Weight
100.99 lb(s) / 45.81 kg
Additional Dimensions
• Product packaging dimensions (HxWxD) (in): 23.25 x 46.99 x 33.49
• Required distance above cooktop/ranges: 24"/27
• Height of the chimney (in): 27 7/16" - 42 7/8"/27 7/16" - 47 7/8"
• Overall appliance dimensions (HxWxD) (in): 29 13/16" - 45 5/16" / 29 13/16" - 50 5/16 " x 42 1/16" x 27"
• Required distance above cooktop/ranges: 24"/27
• Height of the chimney (in): 27 7/16" - 42 7/8"/27 7/16" - 47 7/8"
• Overall appliance dimensions (HxWxD) (in): 29 13/16" - 45 5/16" / 29 13/16" - 50 5/16 " x 42 1/16" x 27"
Shipping Dimensions
Weight
112.99 lb(s) / 51.25 kg
Warranty
Warranty
Limited 1 year parts and labor.
UPC
UPC#
825225909071
