Features

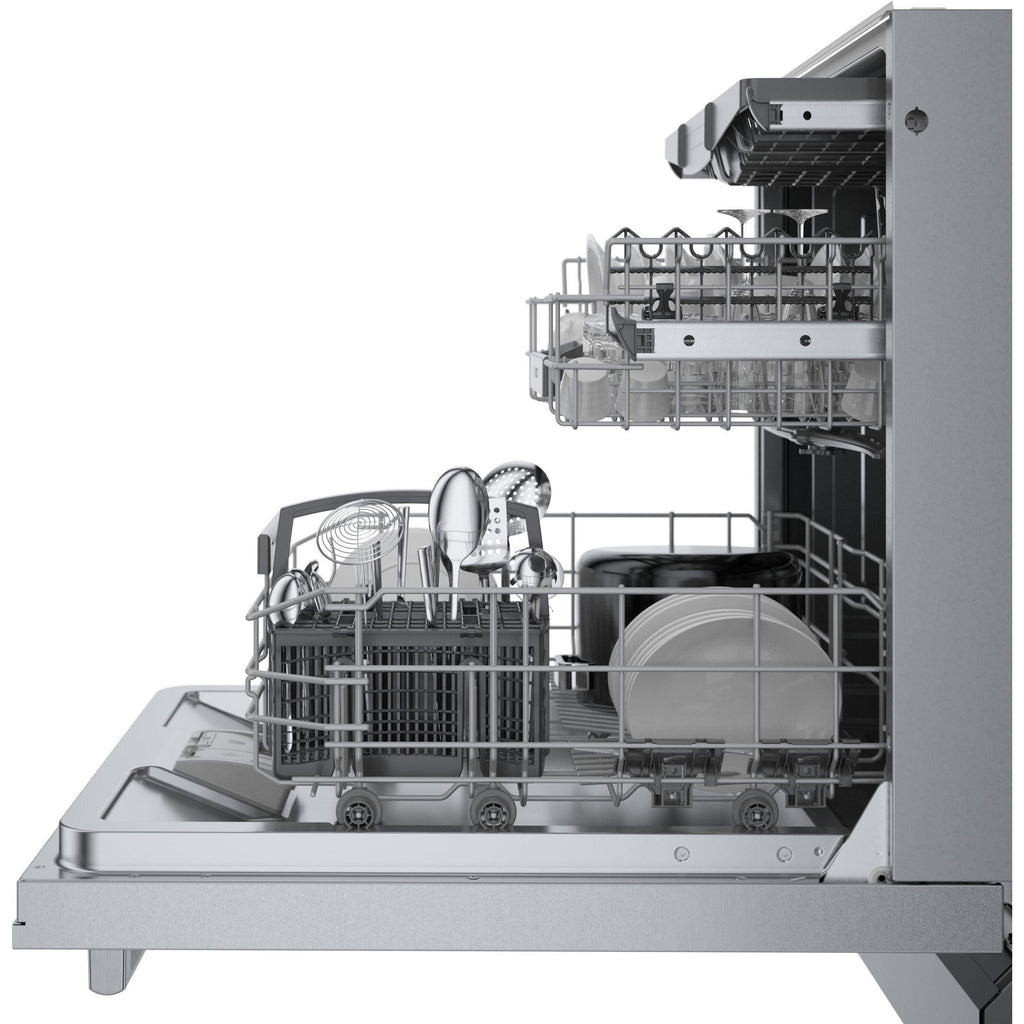

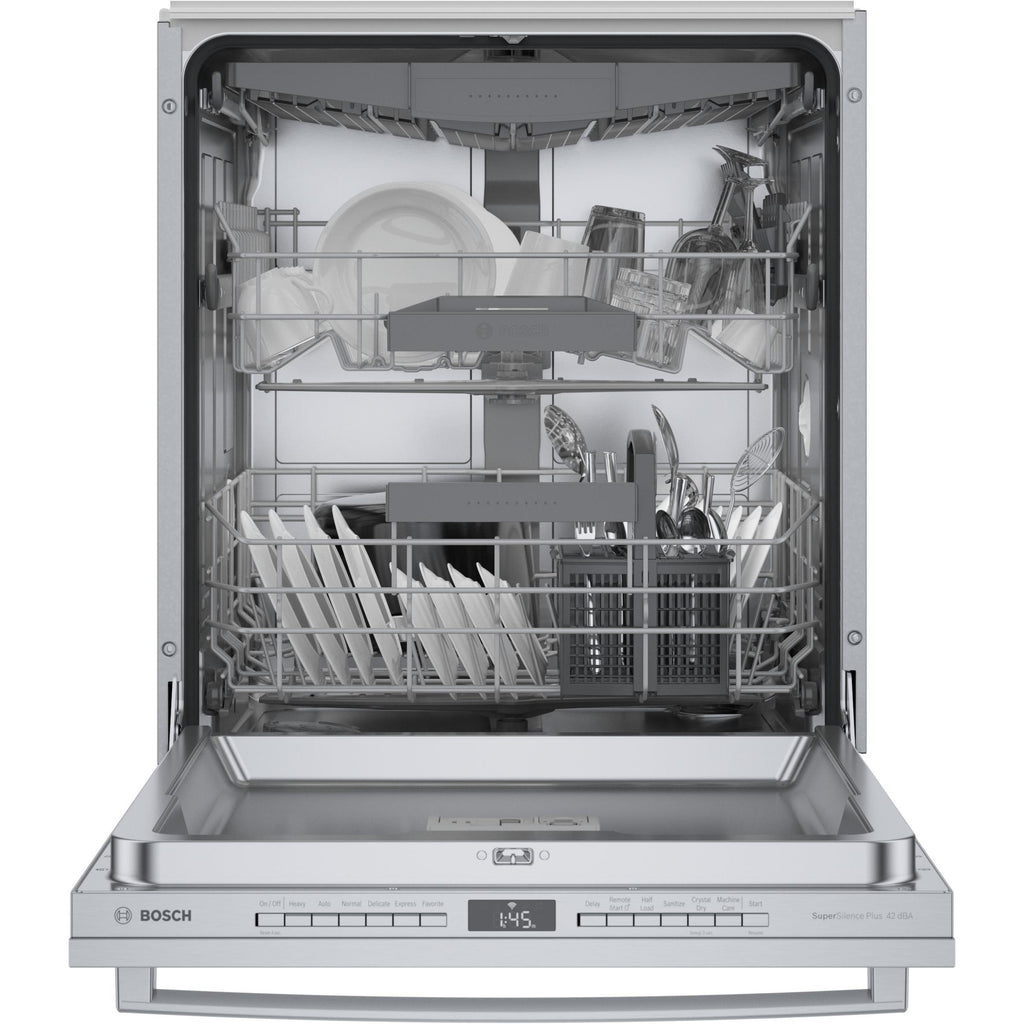

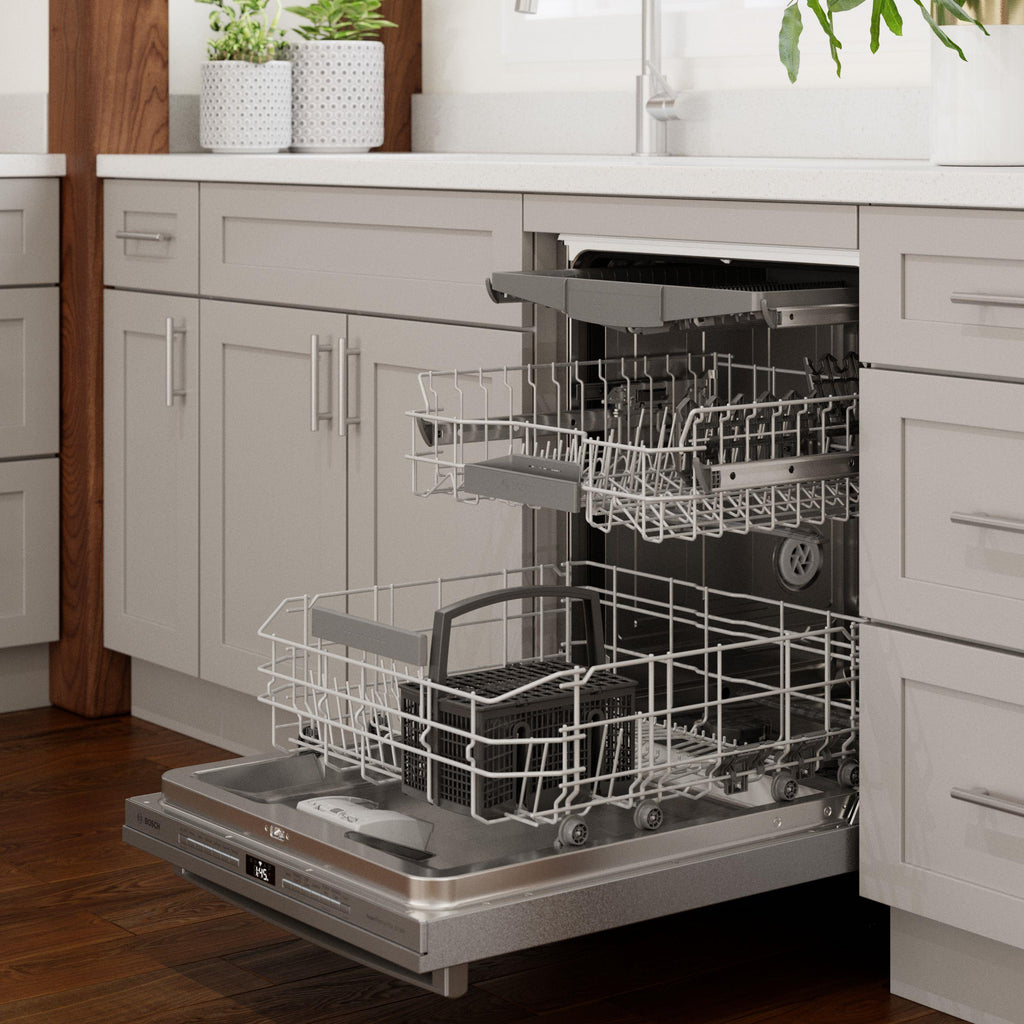

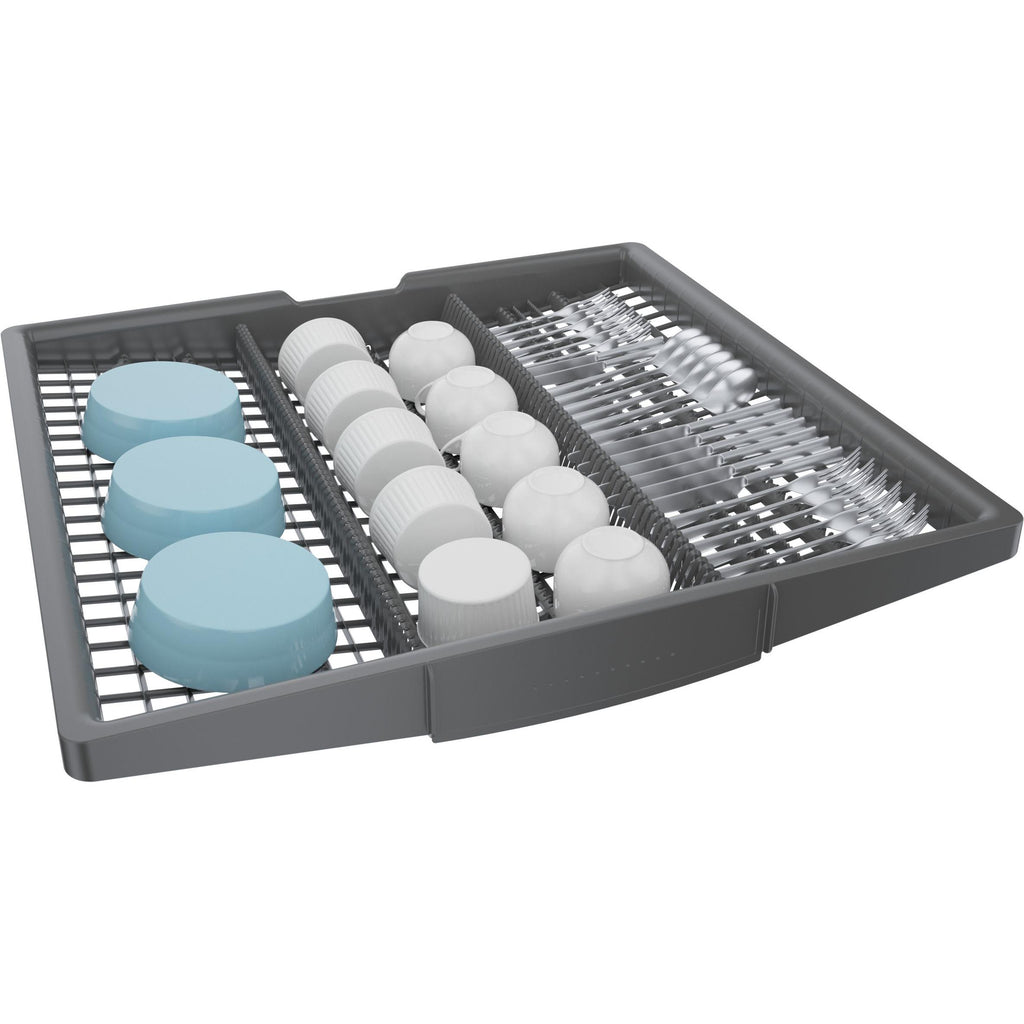

3RD RACK
The 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items. *Compared to a Bosch dishwasher with 2 racks
WATER SOFTENER
The water softener removes hard water spots caused by lime deposits and softens water to the appropriate level for superior washing results.

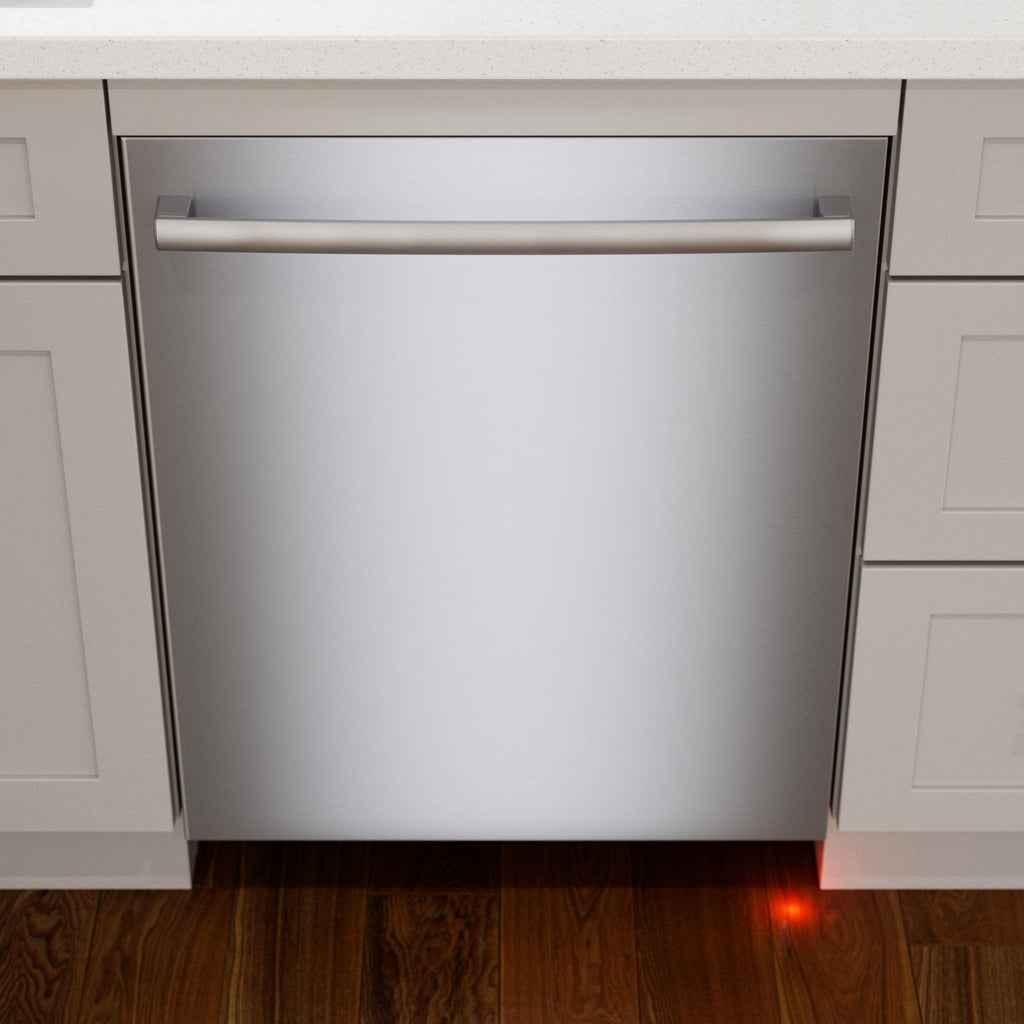

AQUASTOP® PLUS
A Bosch exclusive, AquaStop® Plus detects leaks in the solid molded base of the dishwasher, shuts down operation and automatically pumps out water so it cannot make contact with the floor. Additionally, an electro valve at the water tap and a double-walled hose system makes AquaStop® Plus the most comprehensive safety system available.

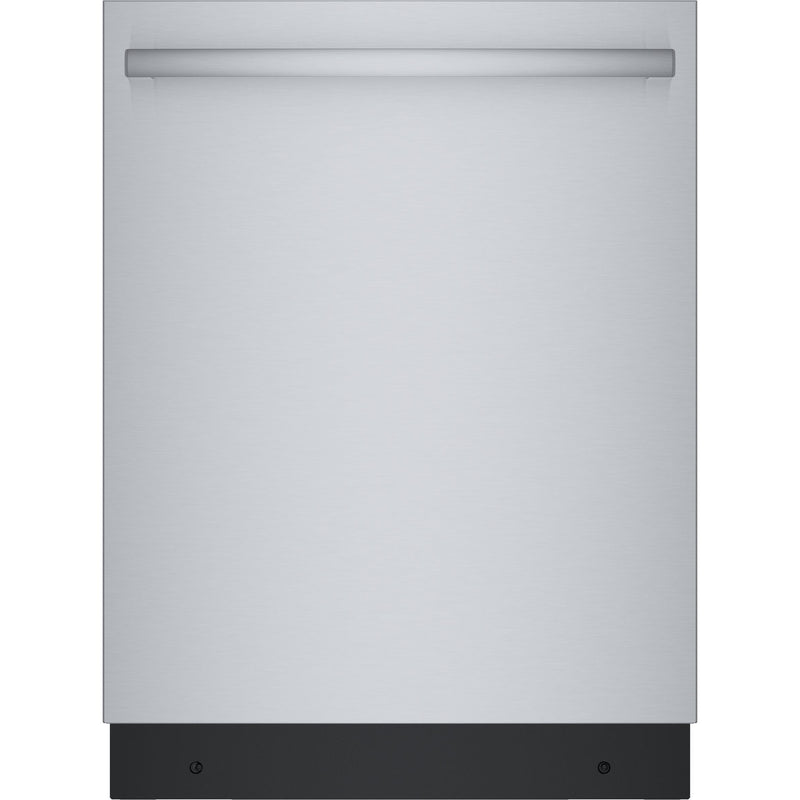

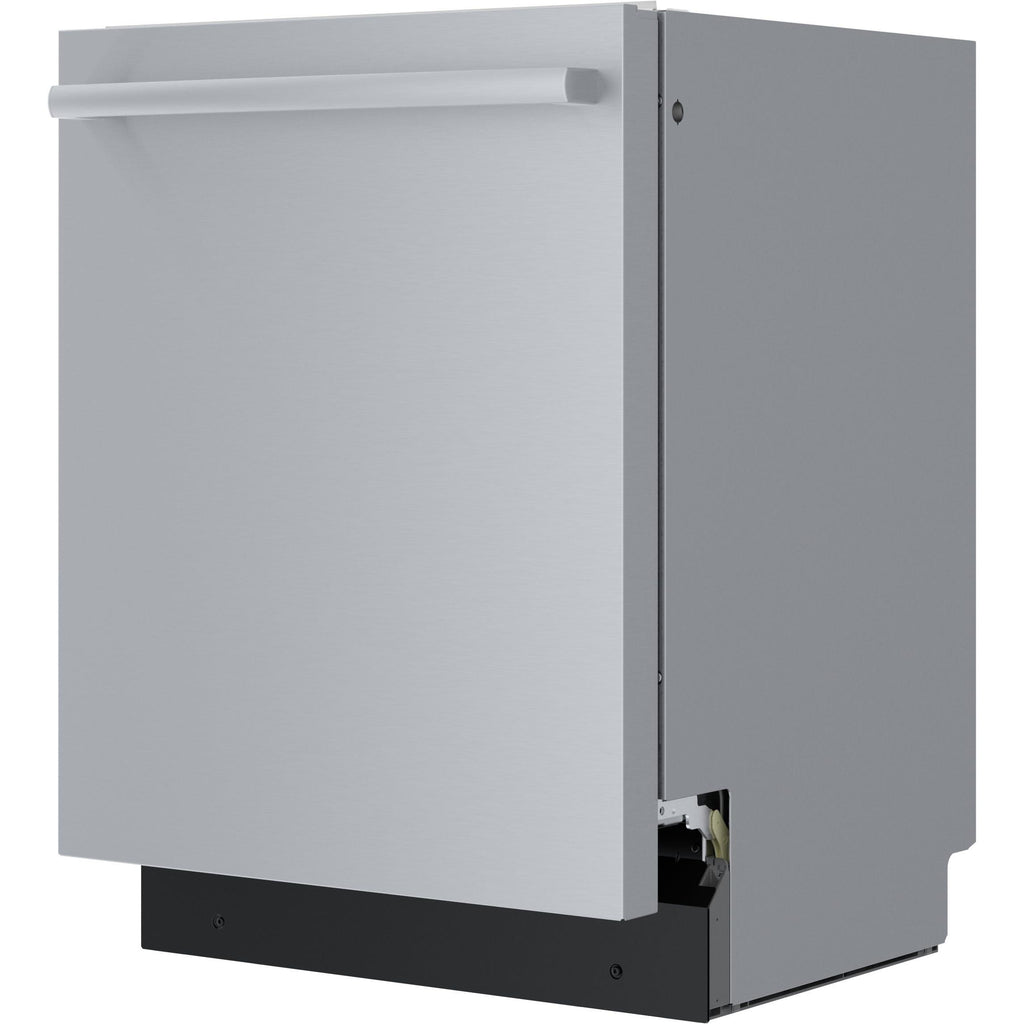

Specifications
General
Series Name
800 Series
Type
Built-In
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Place Settings
15
Tub Material
Stainless Steel
Silence Rating
42 dB
Cycle Information
Number of Cycles
6
Wash Cycles
• Intensive
• Auto
• Economy
• Glass 40°C
• Quick Wash 45°C
• Custom program
• Auto
• Economy
• Glass 40°C
• Quick Wash 45°C
• Custom program
Options
• Half Load
• HygienePlus
• Machine Care
• Remote Start
• Zeo Dry
• HygienePlus
• Machine Care
• Remote Start
• Zeo Dry
Features
Technologies
• Home Connect (Wi-Fi)
• PrecisionWash®
• CrystalDry™
• RackMatic®
• AquaStop Plus®
• PrecisionWash®
• CrystalDry™
• RackMatic®
• AquaStop Plus®
3rd Rack System
Yes

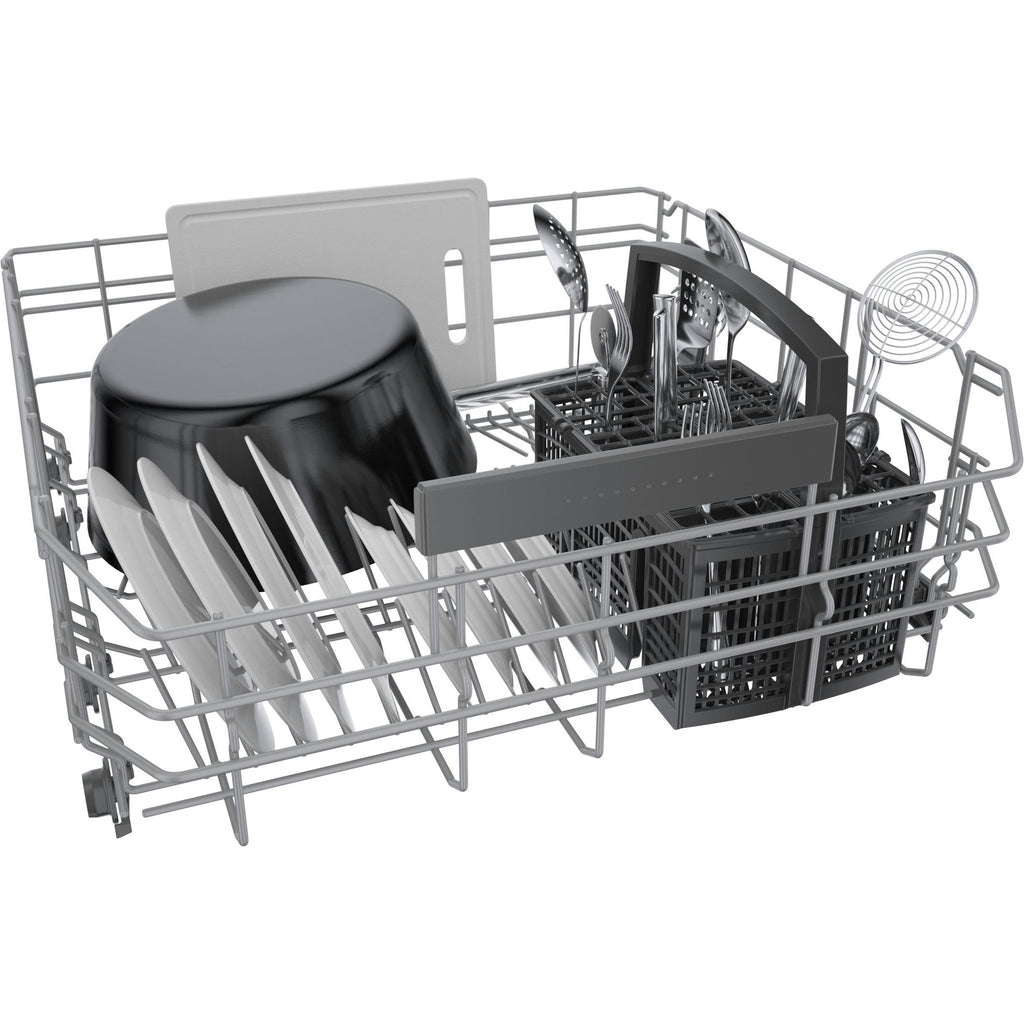

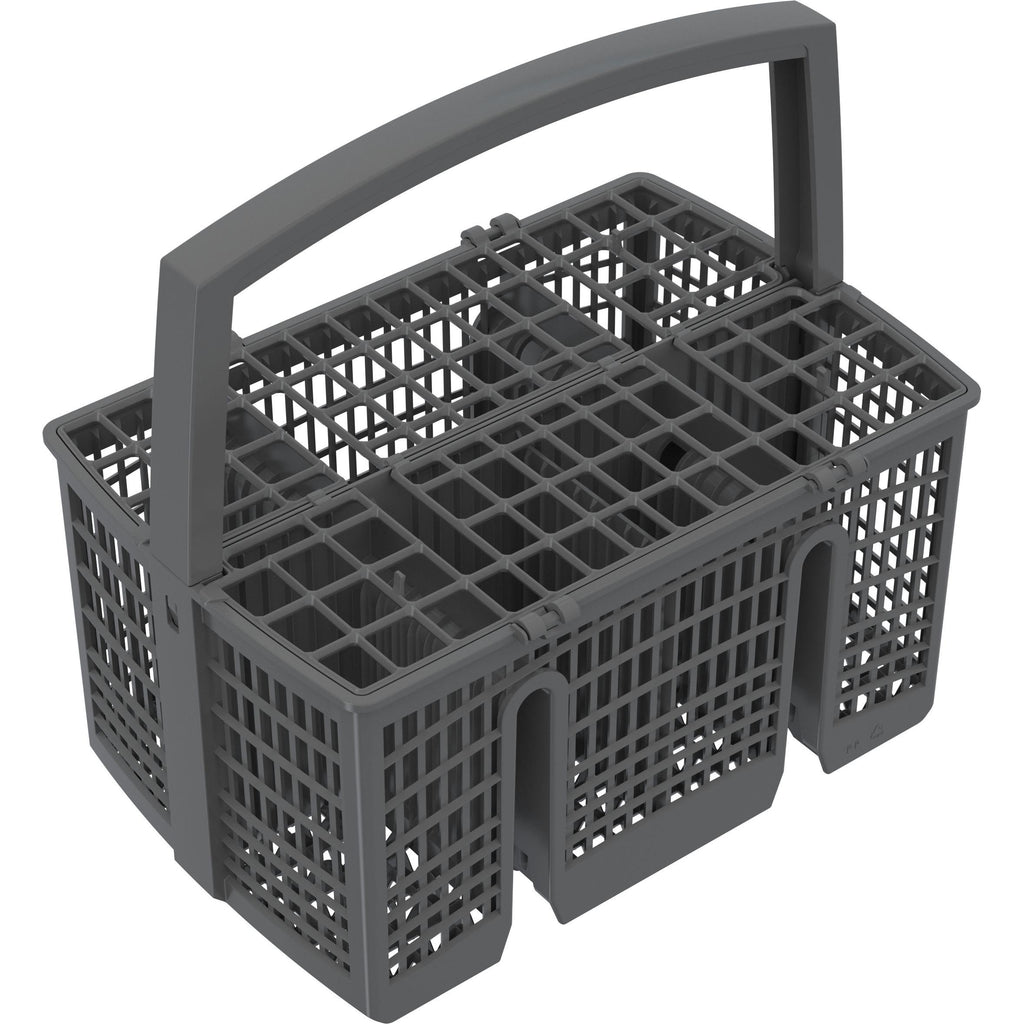

Silverware Basket
Yes
Wi-Fi
Yes
Additional Information

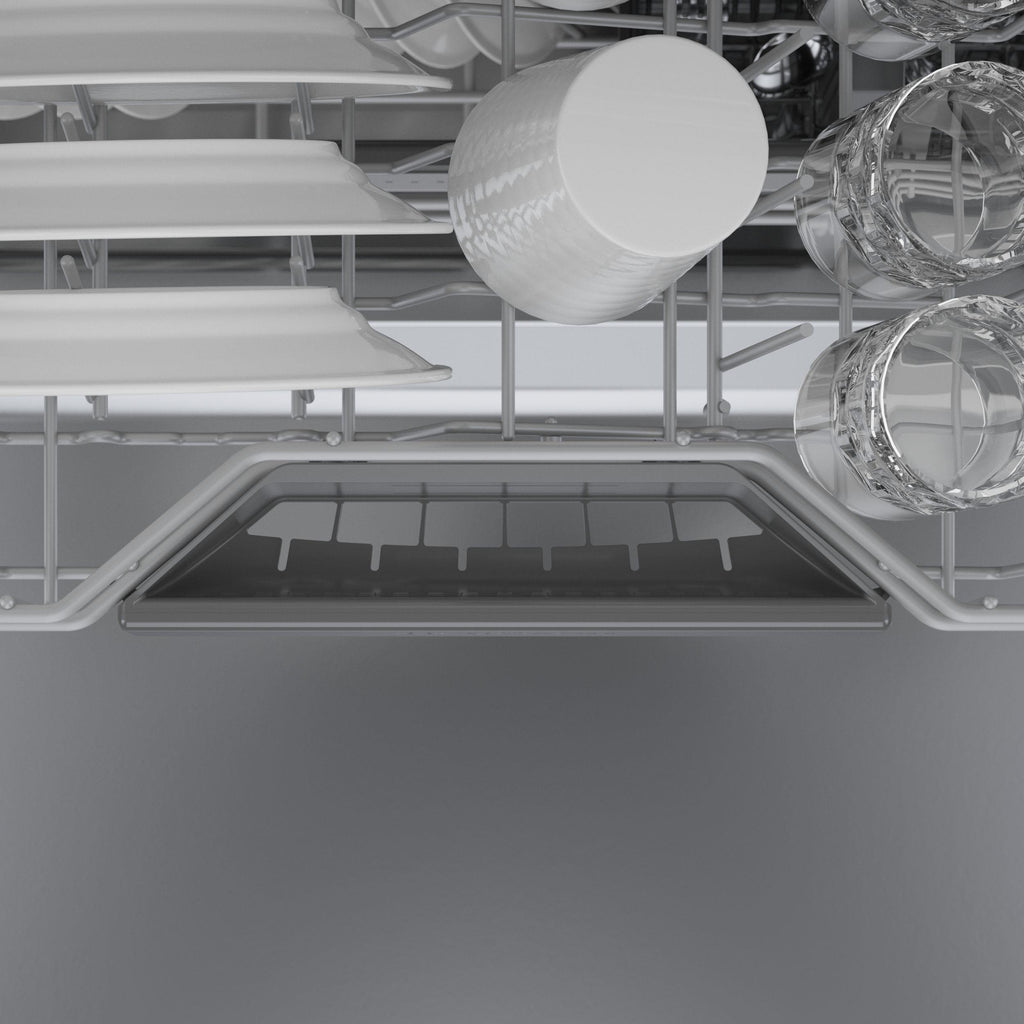

• Concealed Heating element
• Water Softener
• Water Softener
Electrical Information
Information
• 1,440 W
• 120 V
• 60 Hz
• 12 A
• 120 V
• 60 Hz
• 12 A
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Optional
• Junction Box SMZPCJB1UC
• Dishwasher Softener Salt (4.4 lbs) SGZ9091UC
• Dishwasher Drain Hose Extension SGZ1010UC
• Accessory Kit SMZ5000
• Anti-tarnish Silverware Cassette SMZ5002
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
• Dishwasher Softener Salt (4.4 lbs) SGZ9091UC
• Dishwasher Drain Hose Extension SGZ1010UC
• Accessory Kit SMZ5000
• Anti-tarnish Silverware Cassette SMZ5002
• Edge Protector + Power Cord Clip Install Kit SMZEPCC1UC
Dimensions
Class Width
24"
Width
23.54 inch(es) / 59.8 cm
Height (Min.)
32.09 inch(es) / 81.5 cm
Depth (Without Handle)
22.56 inch(es) / 57.3 cm
Weight
109.35 lb(s) / 49.6 kg
Additional Dimensions
Required cutout size (HxWxD) 32 1/8" x 24" x 24"
UPC
UPC#
825225970361
